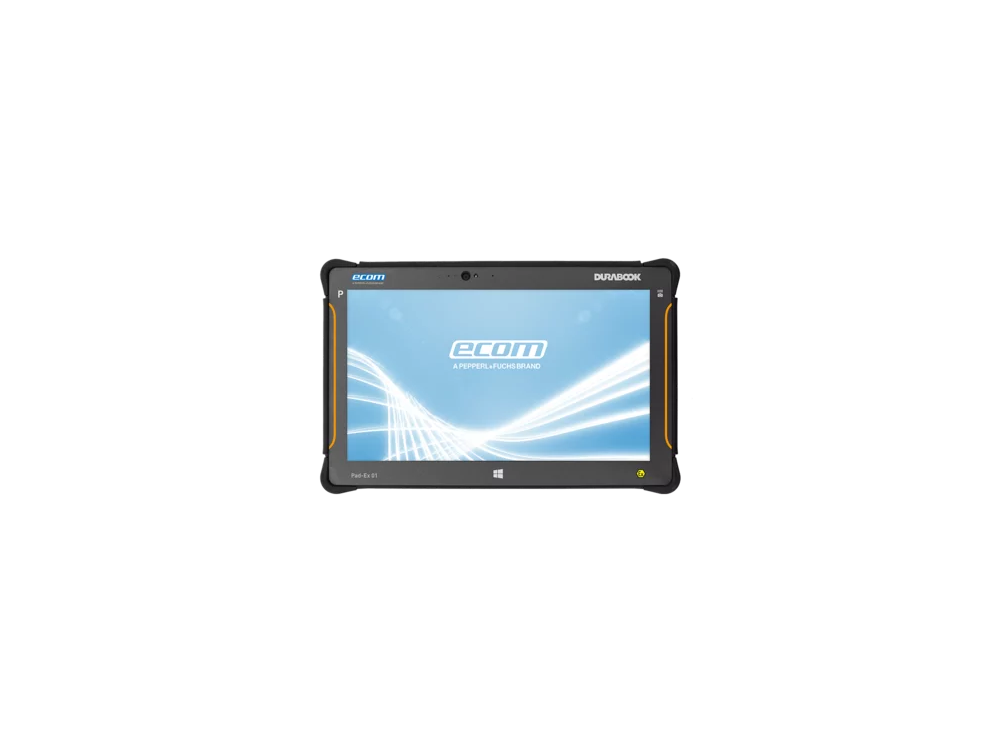

Ecom Pad-Ex® 01 P8 DZ2: Windows field mobile tablet & desktop PC

  • 00400-HW-ECOM-098

  • 00400-HW-ECOM-098

  • 00400-HW-ECOM-098

The Ecom Pad-Ex® 01 P8 DZ2 complies with environmental standards and boasts compatibility with the 8th generation Intel® Core™ i7 processor. With a battery life of up to 7 hours and support for Windows® 10 Pro, it offers a powerful and enduring computing experience.

Manufactured by:

ecom

Need Help Ordering?
Call +88 01714243446

Stock
5 in stock

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
5 in stock

Custom Pricing

Get A Quote

Overview

Pad-Ex® 01 P8 DZ2 manages to fully meet IP64, 4 feet drop and MIL-STD 810G for vibration. With its additional display protection it offers complete protection against the harsh environment field workers face and minimizes burden on their bodies during long hours of work.

Specification


RUGGED FEATURES
  • IP64 according to EN/IEC 60079-0 (ATEX/IECEx)
  • IP65 according to EN/IEC 60529 (industrial standard)
  • MIL-STD 810G certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
  • MIL-STD 461 certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
  • ANSI/ISA 12.12.01-2000, Class I, Division 2
  • Device is dropped on 26 faces from 4' (1,2 m)

ENVIRONMENT TEMPERATURE

Operating: -10°C - 55°C (14°F - 131°F)
Storage: -10°C - 55°C (14°F - 131°F)

HUMIDITY

Operating: 5% to 95%



TECHNICAL FEATURES

OPERATING SYSTEMFull Windows 10 64 Bit / Windows 10 Pro
CPU
  • Intel® Core™ i7-8550U (8th Gen.) 1.8GHz processor with Turbo Boost Technology up to 4.0GHz, 8MB cache
MEMORYOne DDR4 socket for 8GB (16GB optional)
STORAGEM2-SATA SSD 256GB (512GB optional)
DISPLAY
  • 11.6" HD (1920 x 1080) LCD Panel
  • Capacitive Multi-Touch
  • Optical Bonding Sunlight Readable LCD
  • Ambient Light Sensor
  • Brightness 1000 cd/m2 (nit)
SENSORBuilt-in G sensor, Gyroscope, and E-Compass
AUDIO
  • Integrated speaker x 1
  • Integrated microphone - Intel® High Definition Audio Compliant
CAMERA
  • 2MP Front Facing Camera
  • 8MP Rear Camera with auto focus and LED flashlight
  • support Geo Tagging (Optional)
COMMUNICATION
  • 4G LTE (Optional)
  • GPS (Optional)
  • Intel Wireless AC9260 802.11 a/b/g/n/ac
  • Bluetooth 5.0
DATA COLLECTION
  • 1D / 2D Barcode Scanner (Optional)
I/O PORTS
  • Two USB 3.0 (Type A)
  • One Headphone out / Mic-in jack
  • One Docking Connector
  • Two RF pass-through connectors for WWAN & GPS
EXPANSION SLOTS
  • One Micro SD Card slot support SDHC & SDXC
  • One SIM Card slot (standard SIM Card)
BUTTON
  • Power
  • Volume
  • Windows Touch button
  • Barcode / Camera Touch Button
  • Programmable Touch Button
BATTERYOne 3,950 mAh Li-Polymer battery pack
7,800 mAh (Optional) Li-Polymer battery pack
AC ADAPTOR19 V; 3,42 A; 65 W
DIMENSION298 mm x 192 mm x 20 mm (11.75" x 7.55" x 0.78")
WEIGHT1.2 Kg (~42.32 oz)

CATALOGS

Data Sheet

Other ecom Products

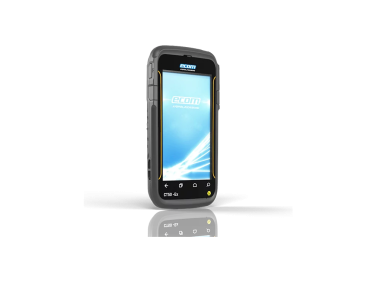

ECOM Intrinsically safe industrial smartphone Smart-Ex® 02 DZ1
