Omega Link Cellular Gateway Series

  • 02020-HW-Omega-007

  • 02020-HW-Omega-007

  • 02020-HW-Omega-007

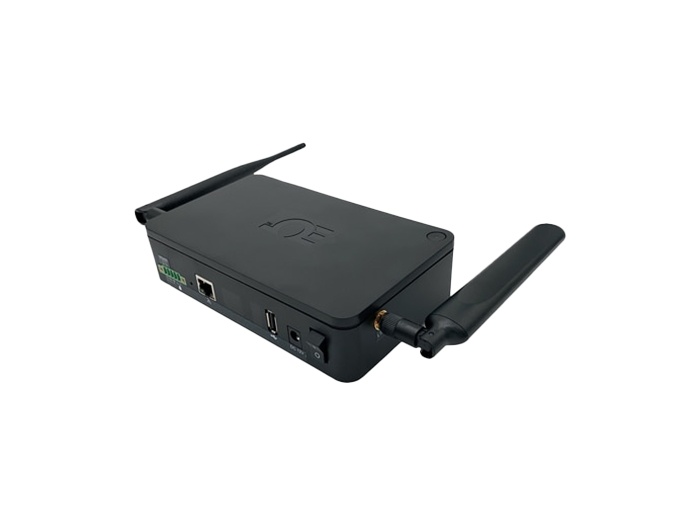

This high performance wireless gateway seamlessly connects to up to 40 long range Omega Link Smart Sensor devices.

Manufactured by:

omega

Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote

Overview

This high performance wireless gateway seamlessly connects to up to 40 long range Omega Link Smart Sensor devices. LTE network-enabled connectivity ensures fast,wirelessconnection to the Omega Link Cloud. Local access is also available through the built-in web server accessible through an RJ45 port. The GW-002-1-LTE supports wired devices including Modbus TCP and RTU RS232/RS485 through a 5-pin serial terminal and an RJ45 port (used for local configuration only). It includes one USB port to enable local smart probe connections through a wired Omega Link Smart Interface.

The Omega Link LTE Gateway is easily paired to Omega Link Smart Sensors with the press of a button and will automatically show up on your Omega Link Cloud account. Local data logging for your Smart Sensor devices keeps your data secure in the event of a power or network outage. Reports, History, and E-mail alerts from the Omega Link Cloud keep you informed on the status of all your vital processes.

Specification


Wireless Communication Frequency
915 MHz
Range
Up to 3.2 km
LTE Service Provider
AT&T
Supported LTE Bands
2, 4, 12
AC Adapter
DC 12V @ 2A
RJ45
1x port (TCP Modbus local config only)
USB
1x USB 2.0
DC Jack
DC 12V power input
Serial Port
RS232/RS485
Alarm
SSR 36VDC 100mA
Rating
IP40
Operating Temperature
-20℃ to 65℃ (-4℉ to 149℉,) non-condensing
Dimensions
170 mm L x 100 mm W x 42 mm H (6.69&rdquo x 3.93&rdquo x 1.65&rdquo)
Max number of Smart Sensors
Up to 40 Smart Sensors can connect to the LTE Gateway unit.
