NG # 03884-HW-Omega-055
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

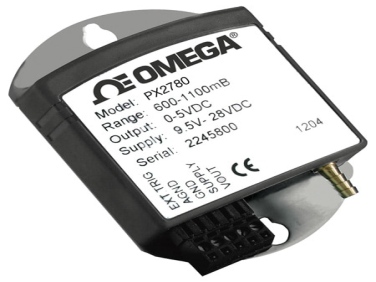

Get A QuoteThis barometric pressure sensor delivers high accuracy (±0.4%) and excellent long-term stability (<±0.1 hPa/year), making it ideal for precise atmospheric pressure monitoring. It operates over a wide barometric range (600–1100 mBar) and in extreme temperatures from -40 °C to 60 °C, with rapid response times under 100 ms.
Designed for reliability, it features a rugged housing with a mounting plate, barbed fitting process connection (1/8 in), and removable screw terminal for easy installation and wiring. The sensor offers a voltage output of 0–5 V and supports a broad supply range of 9.5–28 Vdc with minimal power consumption, including a low-power sleep mode.
| Accuracy | ± 0.4 % |
| Accuracy Class | > 0.25% |
| Burst Pressure | 29 psi Maximum |
| Compensated Temperature, Max | 60 °C |
| Compensated Temperature, Min | -40 °C |
| Electrical Connection | Removable Screw Terminal |
| Electrical Output | 0 to 5 V |
| Measurement Pressure Type | Barometric |
| Measurement Pressure, Max | 1100 mBar |
| Measurement Pressure, Min | 600 mBar |
| Media Compatibility | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen |
| Mounting | Mounting plate |
| Operating Temperature, Max | 60 °C |
| Operating Temperature, Min | -40 °C |
| Output Resistance | <10 Ω |
| Output Signal | Voltage |
| Process Connection Size | 1/8 in |
| Process Connection Type | Barbed Fitting |
| Proof Pressure | Up to 1500 hpa |
| Resolution | 0.1 hPa |
| Response Time | <100 ms |
| Sensitivity Effect | <± 0.09% full scale/50°C |
| Span Setting Adjustable Range | ± 5 mV |
| Stability | <± 0.1 |
| Stability Note | Long Term Stability: <± 0.1 hPa (mb)/year |
| Storage Temperature, Max | 120 °C |
| Storage Temperature, Min | -60 °C |
| Supply Power Note | 9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit |
| Supply Voltage | 9.5 to 28 Vdc |
| Thermal Effect on Span error, Max | ± 1% gage |
| Warm Up Time | <1 sec |
| Warm-Up Shift | <0.1 hPa (mb) maximum |
| Weight | 137 g |
| Zero Setting Adjustable Range | ± 5 mV |
| Zero/Balance Error | <± 0.18% full scale/50°C |
