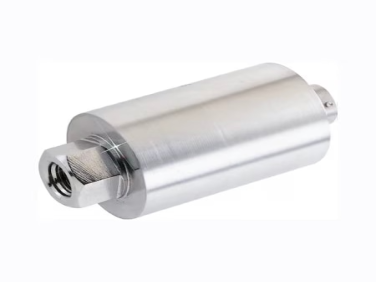

High Accuracy, Hermetically Sealed Pressure Transducers PX01C1-050A5E

  • NG # 03883-HW-Omega-054

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This is a high-precision absolute pressure transducer engineered for demanding applications requiring exceptional accuracy and long-term stability. With an accuracy of ±0.09% and a repeatability of ±0.05% FSO, it delivers reliable performance for critical measurement tasks. Its rugged stainless steel construction (17-4 SS wetted materials) and hermetically sealed 4-active-arm strain gauge bridge make it highly durable in harsh environments.

Specification

Accuracy± 0.09 %
Accuracy Class< 0.1%
Additional Features 1None
Burst Pressure3x Full Scale
Burst Pressure Note300% of rated pressure
Compensated Temperature, Max71 °C
Compensated Temperature, Min16 °C
Electrical ConnectionMIL-26482-I 10-6P
Electrical Connection NotePTIH-10-6P connector (or equal) Mating connector (sold separately), order PT06F10-6S
Electrical Output0 to 5 V
Hysteresis0.05% FSO
Linearity Error0.0005
Linearity Note0.05% FSO
Materials, Wetted17-4 Stainless Steel
Mating ConnectorMIL-26482-I 10-6S
Measurement Pressure TypeAbsolute
Measurement Pressure, Max50 psi
Measurement Pressure, Min0 bar
Operating Temperature, Max121 °C
Operating Temperature, Min-46 °C
Output SignalVoltage
Process Connection Size1/4 in
Process Connection TypeNPT Male
Proof Pressure150% Full Scale
Proof Pressure Note150% of rated pressure
Repeatability Error± 0.05% FSO
Sensing Element4-active-arm Strain Gauge Bridge
Sensing Element Note4-active-arm bridge, using thick-film strain gages in a hermetically sealed chamber
Shunt Calibration ValueValue Specified on calibration sheet
Supply Voltage24 to 32 Vdc
Thermal Effect on Span error, Max± 0.002% FSO/°F
Thermal Effect on Zero error, Max± 0.002% FSO/°F, ± 0.001% FSO/°F
Weight388 g
Zero/Balance Error0 V ± 10% ADJ
