NG # 006305-HW-Dräger-005

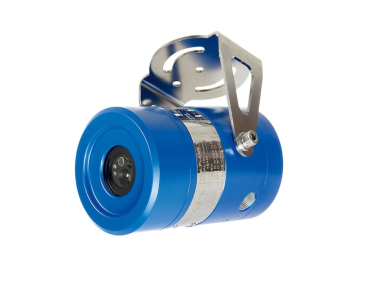

This detector integrates ultraviolet and infrared sensors to verify flame signatures reliably, even in challenging environments. The dual-technology design enhances detection accuracy, minimizes nuisance alarms, and provides dependable protection for industrial safety systems.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteA flame detection solution that combines UV and IR sensing technologies to ensure fast and accurate identification of hydrocarbon-based fires. Its advanced signal processing delivers high performance with a significantly reduced false alarm rate.
| Measuring Principle | Radiation |
|---|---|
| Field of view | Horizontal 90°, Vertical 90° |
| Response time | Typically 5 seconds |
| Cable entry | Dual M25 or ¾''NPT |
| Increased Safety | Yes |
| SIL | No |
| 4-20 mA | No |
| HART® | Yes |
| RS-485 | Yes |
| Relay | Yes |
| Methane | 30 m |
|---|---|
| Ethanol | 30 m |
| n-Heptane | 39 m |
| Diesel Fuel / JP5 / Kerosene | 36 m |
| Ethylene glycol | 15 m |
| Gasoline | 39 m |
| Methanol | 25 m |
| IPA (Isopropyl Alcohol) | 37 m |
| Acetone | 39 m |
| Hexane | 40 m |
| Power Supply | 18 to 32 V DC (24 V DC nominal) |
|---|---|
| Temperature (operation) | -60°C - 85°C |
| Humidity | 0 to 100 % r.h., non-condensing |
| Dimensions (H × W × D) | 22x10 cm |
| Weight | 6 Kg |
| Housing Material | Aluminium or stainless steel, powder-coated |
| IP class | IP66 / NEMA 4X |
| ATEX | Yes |
|---|---|
| IECEx | Yes |
| UL | No |
| CSA | No |
| CE marking | Yes |
| GOST (EAC) | No |
| Performance approval FM3260 | Yes |
| Performance approval (DNV Type Approval) | No |
| Shipping approval (DNV Type Approval) | No |
| FM | Yes |
