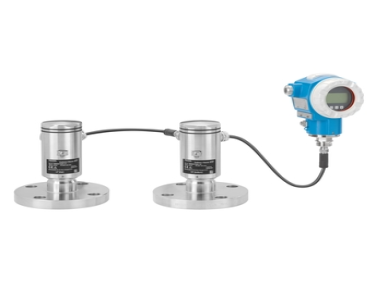

Endress+Hauser Electronic differential pressure Deltabar FMD72

  • NG # 006220-HW-ENDRESS-020

The electronic dp Deltabar FMD72 is an advanced differential pressure system designed for precise measurement of level, pressure, volume, and mass in pressurized liquid tanks and distillation or evaporation processes. Using two digital ceramic sensors, it delivers stable, maintenance-free performance without the mechanical issues of traditional DP methods.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Deltabar FMD72 operates with separate high-pressure and low-pressure ceramic sensors that capture hydrostatic and head pressure independently. The transmitter digitally calculates level from these values, ensuring high accuracy, improved reliability, and enhanced safety. Its electronic architecture offers long-term stability and eliminates problems associated with capillaries, impulse lines, and mechanical DP systems.

Specification

Measuring principle

Differential pressure

Characteristic

Electronic differential pressure transmitter with metal sensor for level, volume or mass measurement in liquids.

Supply voltage

4...20 mA HART:
12...45V DC (Non Ex)
Ex ia: 12...30V DC

Reference Accuracy

0.075% of individual sensor,
"PLATINUM" 0.05% of individual sensor

Long term stability

0.05% of URL/year of individual sensor

Process temperature

–40...+125°C
(–40...+257°F)

Ambient temperature

–40...+80°C
(–40...+176°F)

Measuring cell

400 mbar...10 bar
(6 psi...150psi)

Vacuum resistance

10 mbar (0.15 psi)

Max. overpressure limit

160 bar (2400 psi)

Process connection

Threads
Flange (DIN, ASME,JIS)

Process connection hygienic

DIN11851
DIN11864-1
Tri-Clamp
DRD
Varivent

Material process membrane

316L, AlloyC,

Fill fluid

Silicone oil
Synthetic oil

Material housing

Die-cast aluminum
Stainless steel

Communication

4...20 mA HART

Certificates / Approvals

ATEX, FM, CSA, IECEx, NEPSI, INMETRO, UK Ex

Design approvals

NACE MR0175,
EN10204-3.1,

Hygienic approvals

EHEDG
3A

CATALOGS

Electronic differential pressure Deltabar FMD72
