NG # 006321-HW-Dräger-021

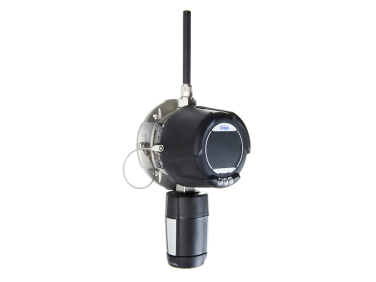

The Dräger Polytron 6100 EC WL is a fully wireless transmitter designed for reliable monitoring of toxic gases and oxygen. With intrinsically safe and SIL2-rated operation, it offers secure performance without the need for wiring or external power.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuotePowered by an internal battery that supports up to 24 months of continuous use, the Polytron 6100 EC WL enables easy, cost-efficient installation, especially in plant expansions, upgrades, or remote locations. Its wireless communication and power system provide maximum flexibility while maintaining high safety standards.
| Type | Wireless Transmitter |
|---|---|
| Measuring Principle | Electrochemical |
| Cable entry | M25 x 1.5 |
| Display | No |
| Intrinsic Safety | Yes |
| Flameproof | No |
| Increased Safety | No |
| SIL | SIL 2 (IEC 61508-1-3) - optional |
| 4-20 mA | No |
| Bus | No |
| HART® | WirelessHART - optional |
| Wireless | Yes |
| Power Supply | Lithium-Thionyl Chloride Battery |
|---|---|
| Temperature (operation) | -40°C - 65°C |
| Humidity | 0 to 100% r.h., non-condensing |
| Pressure (hPa) | 700 - 1300 |
| Dimensions (H × W × D) | 32x15x17 cm |
| Weight | 3.2 Kg |
| Housing Material | Stainless steel |
| Degree of protection (IP class) | IP66/67 |
| ATEX | Yes |
|---|---|
| IECEx | Yes |
| UL | optional |
| CSA | optional |
| CE marking | Yes |
| GOST (EAC) | No |
| Performance approval | No |
| Shipping approval (MED) | No |
Dräger Polytron 6100 EC WL
