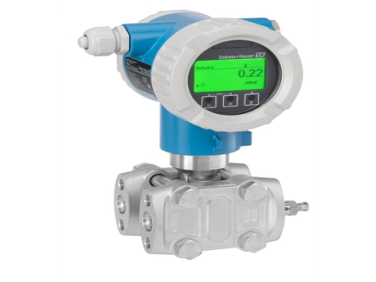

Endress+Hauser Deltabar PMD75B - differential pressure transmitter

  • NG # 006223-HW-ENDRESS-023

The new-generation Deltabar transmitter is a robust differential pressure device featuring secure Bluetooth connectivity for remote operation via the SmartBlue App. It supports condition-based maintenance and includes advanced diagnostics through Heartbeat Technology for enhanced plant availability.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Designed for simplicity and reliability, the transmitter uses intuitive software wizards to guide users through setup, proof testing, and verification. Heartbeat Technology enables continuous monitoring and detection of issues such as plugged impulse lines, ensuring stable performance and reduced maintenance effort.

Specification

Measuring principle

Differential pressure

Characteristic

Differential pressure transmitter which detects process anomalies like plugged impulse lines.
Intuitive and clear wizards for commissioning, proof tests and verification.

Supply voltage

Ex d, Ex e, non-Ex:
10.5...35V DC
Ex i: 10.5...30V DC

Reference Accuracy

Standard:
up to 0.05 %
Platinum:
up to 0.035 %

Long term stability

0.025 % of URL/ year
0.05 % of URL/ 5 years
0.10 % of URL/ 10 years

Process temperature

-40°C...+110°C
(-40°F...+230°F)

Ambient temperature

-40°C...+85°C
(-40°F...+185°F)

Measuring cell

10 mbar...250 bar
(0.15 psi...3750 psi)

Smallest calibratable span

0.25 mbar (0.00375 psi)

Vacuum resistance

25 mbar (0.0375 psi)

Max. Turn down

100:1

Max. overpressure limit

630 bar (9,450 psi)

Process connection

NPT1/4-18
RC1/4"

Material process membrane

316L, AlloyC,
Tantal,
Monel,
Gold

Material gasket

PTFE, FKM, EPDM, FFKM

Fill fluid

Silicone oil,
Inert oil

Material housing

Aluminium, 316L

Communication

4...20 mA HART
PROFIBUS PA
PROFINET with Ethernet-APL
Bluetooth® wireless
technology and app (optional)

Certificates / Approvals

ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex

Safety approvals

SIL

Design approvals

EN10204-3.1,
NACE MR0103,
NACE MR0175

Drinking water approvals

NSF, KTW

Specialities

Heartbeat Technology,
Bluetooth® Operation and maintenance SmartBlue App,
LED Module,
RFID TAG for easy identification,
Plug and play functionalities,
HistoROM

CATALOGS

Deltabar PMD75B - differential pressure transmitter
