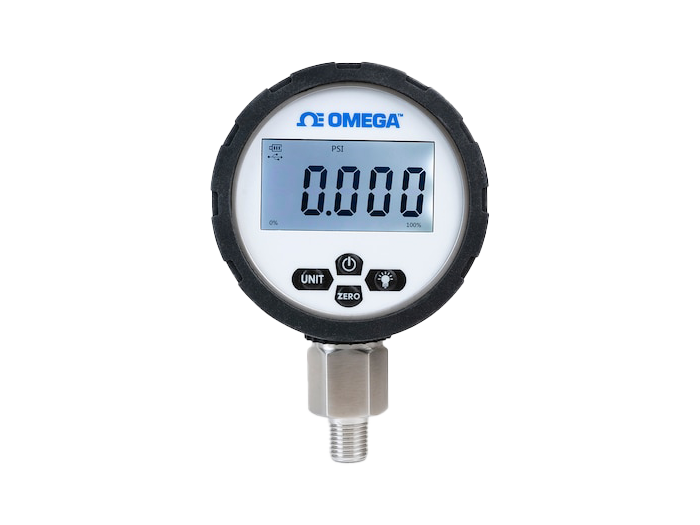

Omega Advanced, Digital Pressure Gauge with Data Logging

  • NG # 02526-HW-Omega-017

  • MF # DPG280-100G

  • SKU # DPG280-100G

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DPG280 series are robust, digital pressure gauges that feature data logging capabilities. Store up to 10,000 points; sample rate is adjustable and can be logged as fast as one measurement per second or as slow as one measurement every hour. Recorded data is accessible by utilizing a USB connection and easy-to-use software that make data analysis straightforward. There are several additional features that add to the usability of this series. There are five selectable engineering pressure units, a zero function, peak measurement display, and bright white backlight. Also displayed is a visual bar to quickly show percentage of rated pressure being utilized and the battery level of the unit to help prevent a unit unexpectedly losing power. These units can measure a wide variety of gasses and liquids that are non-corrosive and compatible with 304 stainless steel.

Specification

Over Pressure 1.5X for ranges <10,000 psi
Wetted Parts 304 SS
Display Type LCD, 5 digits
Sampling Rate Adjustable: 1 sample/second to 1 sample/hour
Backlight Yes - White
Compensation Temperature -0 to 60°C (32 to 140°F)
Operating Temperature -20 to 70°C (-4 to 158°F)
Pressure Accuracy ± 0.25% FS
Stability ± 0.2%FS/year
Power Battery (Two AAA Batteries)
Process Media Non-corrosive gas and liquid media
Case Material 304 SS
Electrical Protection EN61326
Overload Pressure 1.5X for ranges <10
Weight 1.2kg (2.6 lbs)
