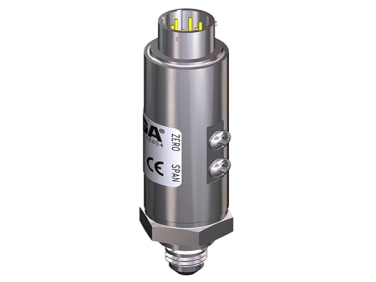

MM-Configurable Highly Configurable, High Accuracy, Custom Pressure Transducers

  • NG # 03870-HW-Omega-041

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This sensor is designed for precise pressure measurement across a wide range of compatible media, including gases, liquids, steam, and various industrial fluids. Built with 316L stainless steel wetted materials, it offers exceptional corrosion resistance and durability, even in harsh environments.

It operates reliably from -45 °C to 121 °C, handles over 1 million pressure cycles, and maintains long-term stability within ±0.1% FS. The device features a DC to 1 kHz bandwidth, rapid <1 ms response time, and an insulation resistance of 100 MΩ @ 50 Vdc. Suitable for both dynamic and static pressure applications, it supports a minimum measurement pressure of 0 psi, making it highly versatile for industrial, laboratory, and process control use.

Specification

SpecificationValue
ADC ResolutionNone
BandwidthDC to 1 kHz
Insulation Resistance100 MΩ @ 50 Vdc
Materials, Wetted316L Stainless Steel
Media CompatibilityAir, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute acids, Gases, Helium, Hydraulic oil, Hydrogen, Light oil, Liquids, Nitrogen, Non-corrosive dry gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids
Operating Temperature (Max)121 °C
Operating Temperature (Min)-45 °C
Pressure Cycles1 million, minimum
Measurement Pressure (Min)0 psi
Response Time< 1 ms
Stability± 0.1%
Stability NoteLong-term stability (1-year): ± 0.1% FS typical
