Omega Digital Vacuum Gauge for Air & Refrigeration Systems

  • NG # 02517-HW-Omega-008

  • MF # DVG-64A

  • SKU # DVG-64A

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

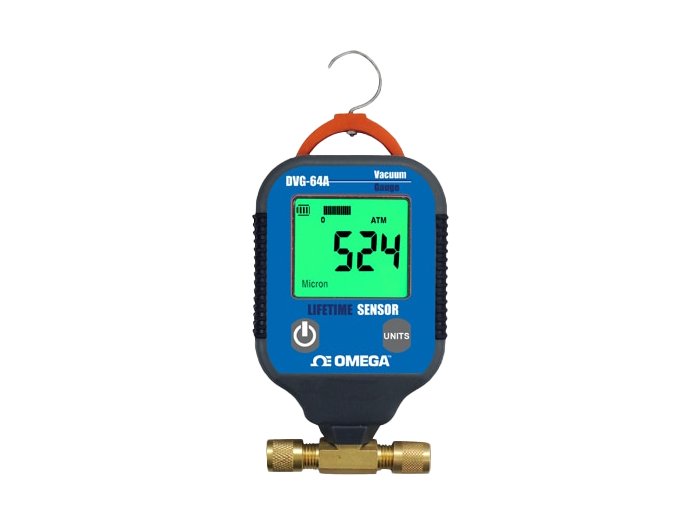

The OmegaTM DVG-64A digital vacuum gauge delivers high precision at a low price. It can accurately read vacuum from 19,000 microns down to 0, over a wide temperature range of -17 to 65°C (0 to 150°F). The vacuum can be displayed in userselectable units.

The DVG-64A incorporates a revolutionary new sensor design that is highly resistant to contamination. Unlike other vacuum gauges currently on the market, the DVG-64A maintains working accuracy even when the sensor is contaminated with oil or similar contaminants. For many applications, the sensor does not require any cleaning for the life of the sensor.

Specification

Display: Updated every ½ second; 0.5 micron resolution below 140 microns
Sensor Type: Thermistor
Connector Type: Standard ¼" male flare fitting
Vacuum Range: 0 to 19,000 microns (0 to 1200 Pa)
Scale: Microns, mbar, Pa, torr, millitorr
Operating Temperature Range: -17 to 65ºC (0 to 150ºF)
Overpressure: 800 psi max (55 bar)
Accuracy: ±10% or ±10 Micron, whichever is larger (50 to 2000 Microns) at 75°F
Power Source: 3 AA batteries (included)
Continuous Usage: Up to 600 hrs
Auto Shut-Off: After 10 minutes when vacuum reading is above 19,000 microns, 1 hour when below
Weight: 0.2 kg (6.7 oz)
Dimensions: 140 H x 70 W x 38 mm D (5.5 x 2.75 x 1.5")
