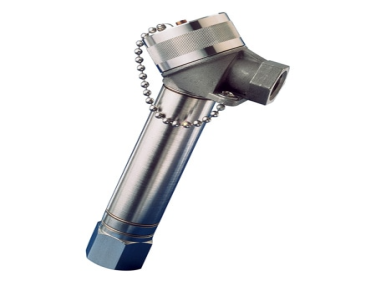

Industrial, Intrinsically Safe Pressure Transmitters PX880-100GI

  • NG # 03888-HW-Omega-059

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This is a high-precision gauge pressure transmitter engineered for industrial applications requiring reliable and accurate pressure measurement. It features a robust 316 stainless steel construction with a cast CF-8M stainless steel head and Buna-N O-ring, ensuring durability in harsh environments. Designed for pressures from 0 to 100 psi, it delivers a 4–20 mA output signal for seamless integration with control systems.

Specification

Accuracy± 0.2 %
Accuracy Class0.1% to 0.25%
Accuracy Detail± 0.2% of calibrated span including linearity, hysteresis and repeatability
Additional Features 1Connection Transmitter
Additional Features 2Cast Head: CF-8M (316 cast SS) with Buna-N O-ring
Compensated Temperature, Max82 °C
Compensated Temperature, Min-29 °C
Electrical Connection1/2 in NPT male Conduit with Cable
Electrical Output4 to 20 mA
Enclosure Material316 Stainless Steel
Fill FluidDC 200 silicone oil
Loop Resistance, Max(Vs – 12) x 50
Materials, Wetted316 Stainless Steel
Measurement Pressure TypeGauge
Measurement Pressure, Max100 psi
Measurement Pressure, Min0 psi
Operating Temperature, Max100 °C
Operating Temperature, Min-40 °C
Output SignalCurrent
Process Connection Size1/2 in
Process Connection TypeNPT Female
Response Time20 ms
Stability± 0.5%
Stability Note± 0.5% of upper range for 6 months
Storage Temperature, Max100 °C
Storage Temperature, Min-40 °C
Supply Power Note12 to 40 Vdc with reverse polarity protection
Supply Voltage12 to 40 Vdc
Thermal Effect on Span error, Max± 0.02% FS/°F, ± 0.032% FS/°F
Thermal Effect on Zero error, Max± 0.02% FS/°F, ± 0.032% FS/°F, ± 0.02% FS/°F, ± 0.032% FS/°F
Vibration0.1% upper limit for 3 g @ 200 Hz
Weight725 g
