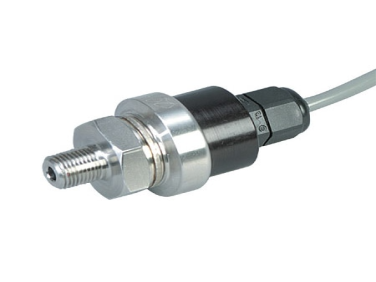

Get A QuoteThis compact, robust gauge pressure sensor provides highly accurate voltage output, excellent long-term stability, and is designed for harsh environments with wide temperature, shock, and vibration tolerance. Ideal for industrial or laboratory pressure monitoring applications.
| Accuracy | ± 0.3 % |
| Accuracy Class | > 0.25% |
| Accuracy Detail | 0.3% BFSL max (includes linearity, hysteresis and repeatability) |
| Burst Pressure | 3x Full Scale |
| Burst Pressure Note | 3X FS |
| Cable Length | 0.4 m |
| Compensated Temperature, Max | 75 °C |
| Compensated Temperature, Min | -25 °C |
| Diameter | 29.7 mm |
| Electrical Connection | Cable |
| Electrical Output | 1 to 5 V |
| Electrical Output Note | 0 to 50 mV for 0 to 1 psi models, 0 to 100 mV for all other ranges; bridge output |
| Height | 72 mm |
| Materials, Wetted | 316L Stainless Steel |
| Measurement Pressure Type | Gauge |
| Measurement Pressure, Max | 100 psi |
| Measurement Pressure, Min | 0 psi |
| Operating Temperature, Max | 80 °C |
| Operating Temperature, Min | -40 °C |
| Output Resistance | 50000 Ω |
| Output Signal | Voltage |
| Process Connection Size | 1/8 in |
| Process Connection Type | NPT Male |
| Process Temperature, Max | 100 °C |
| Process Temperature, Min | -40 °C |
| Proof Pressure | 2x Full Scale |
| Proof Pressure Note | 2X FS |
| Shock | 30 g |
| Stability | <0.25% |
| Stability Note | 1-Year Stability: <0.25% FS |
| Supply Voltage | 10 Vdc |
| Thermal Effect on Span error, Max | 2% FS maximum over compensated temperature range |
| Thermal Effect on Zero error, Max | 2% FS maximum over compensated temperature range, 2% FS maximum over compensated temperature range |
| Vibration | 10 g, 55 to 2000 Hz |
| Weight | 142 g |
