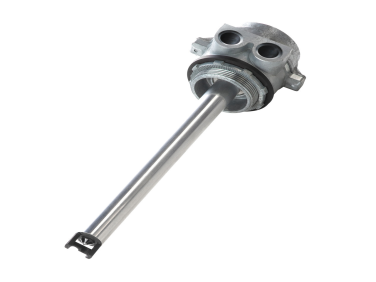

Scully Scul-Sense™ SP-FU/MHC(MC) Five-Wire Optic Sensor, 12 in. Shaft, 2 in. NPT Holder, 2 1/8 in. Medium Cap

  • NG # 03168-HW-SCULLY-036

  • MF # SC09213L1

Manufactured By :
Scully
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Scully five-wire optic sensors are purpose-built for liquid petroleum product overfill prevention and point level detection. Designed for use with Scully Intellitrol® and ST-35 series loading rack control monitors. The sensors can also be used with the Scully IntelliCheck® II Monitor or Scully Load Anywhere® Truck Monitor. There is no waiting for the control monitors' permit light to go on because the sensor requires no warm up time. Overfill prevention applications include road tankers, rail cars and storage tanks.

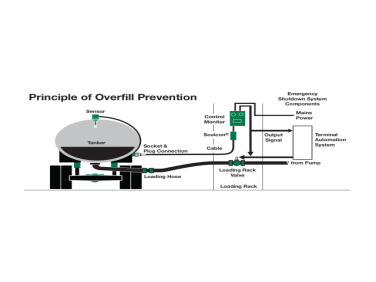

The five-wire optic sensor is a critical component in Scully's unique and patented Dynacheck circuit design. When used in conjunction with Scully electronic monitoring equipment, the overfill protection sensor will provide consistent failsafe monitoring. By constantly checking a "closed loop" pulsing signal across the entire system, Scully ensures a safe and reliable loading operation. If rising fuel contacts the sensor, this signal is interrupted and the controlling pumps and valves are shutdown. No operator involvement is needed to end the loading operation.

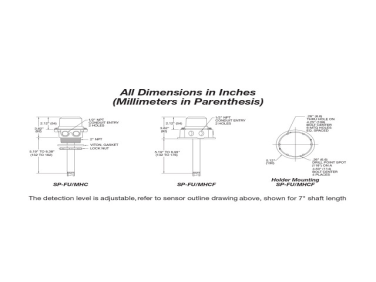

Specification

  • Part: 09213L1
  • Model: SP-FU/MHC(MC)
  • Description: Five-Wire Optic Sensor, 2 in. NPT Holder, 2 1/8 in. Medium Cap
  • Shaft Length: 12 in. (300 mm.)
  • Exposed Materials: Aluminum, Zinc, Borosilicate (Pyrex®) Glass, Epoxy, Conductive Nylon and Viton® Seals
  • Level Repeatability: ± 1/16 in. (± 1 mm.)
  • Electrical Leads: 18 in. (45 cm.) Long, 22 AWG (0.33 mm²)
  • Cable Entry: Two Holes, 1/2 in. NPT Threads
  • Petroleum Product Range: Gasoline Blends & Light Fuel Oils
  • Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)
  • Approvals: The sensor is intrinsically safe for mounting in Class I, Division 1, Groups C & D Hazardous location in accordance with Scully Control Unit approval ratings
