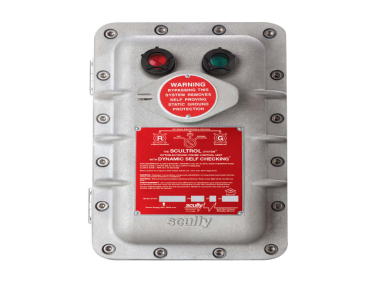

Scully ST-35-115-ELK Multiple Point Optic Sensing Overfill Prevention Controller w/ Indicator Lamps, Protected Bypass Switch, 115V AC

  • NG # 03148-HW-SCULLY-016

  • MF # SC07903

Manufactured By :
Scully
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Scully ST-35 overfill prevention system interfaces with optic sensors. It is typically used for bottom and top-loading of tank vehicles. It is mounted at the loading rack/gantry and connects to the vehicle via the Scully plug and cable assembly. The attached plug and 30 ft. coiled cable connect to the vehicle mounted receptacle, or socket, which is wired to the refueler sensor. Please consult Scully for alternate plug and socket styles to prevent mixing AV gas and jet fuels in dedicated refuelers. The ST-35 system provides the vehicle with an adequate static ground path to the rack/gantry provided the vehicle's overfill equipment is wired and maintained to factory specifications. For additional ground/earth verification options, consult Scully for information on the Groundhog Self-Proving Grounding System.

Specification

  • Part Number: 07903
  • Model: ST-35-115-ELK
  • Power Requirements: 100 - 130 V AC, 50/60 Hz, 20 Watt max.
  • Shutdown Response Time: 0.5 seconds maximum
  • Connections: Provided by internal terminal strips
  • Output Control: One normally open volt free contact, rated 250 V AC, 5A resistive, energized when the sensor is dry
  • Output Control Fuse: Internal 5 Amperes
  • Temperature Range: -40° to +140° F (-40° to +60° C)
  • Approvals: FM for use in Class 1, Division 1, Group D hazardous locations
  • Weight: 28 lbs. (12.7 kg)
