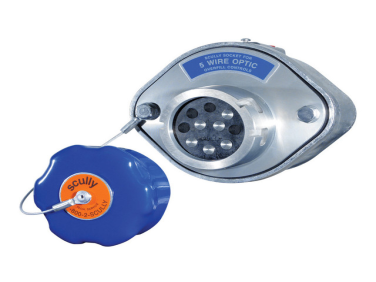

Scully SJ-6W Optic Socket, API Optic Standard, 3-J-Slots

  • NG # 03157-HW-SCULLY-025

  • MF # SC07974

Manufactured By :
Scully
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Scully Sockets are part of a complete vehicle mounted overfill prevention and grounding systems. With over 90% of all bottom-loading terminals in the United States using Scully Overfill Prevention Systems, Scully sockets offer you the compatibility you need at any terminal. The style of plug at each loading terminal that your vehicles load should be considered to ensure a compatible connection. Truck-mounted, they connect to the Scully IntelliCheck® or Load Anywhere® onboard monitor and/or Scully sensors and the terminal loading rack overfill monitor via the terminal plug.

Specification

  • Part: 07974
  • Model: SJ-6W
  • Socket Type: Optic - API Optic Standard, 3 J-Slots
  • Socket Body: Die Cast Zinc
  • Housing: Zinc/Aluminum Alloy
  • Insulator: Glass Filled Polycarbonate
  • Dust Cap: Molded Vinyl
  • Conduit Entry: Two 1/2 in. NPT Threaded Entry Holes
  • Contact: Scully Style Stainless Steel SAE J560 Style - Zinc Plated Brass
  • Connections: Provided by Screw Terminals
