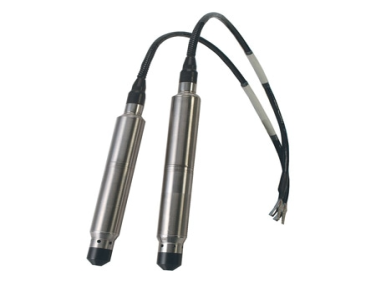

Get A QuoteThis is a high-accuracy gauge pressure sensor designed for industrial applications such as building and maintenance, fluid measurement and control, and waste management. It provides precise pressure measurement from 0 to 15 psi with an accuracy of ±0.2% and excellent long-term stability (±0.1% FS per year).
| Accuracy | ± 0.2 % |
| Accuracy Class | 0.1% to 0.25% |
| Accuracy Detail | (Combined Linearity, Hysteresis and Repeatability): Standard ± 0.20% BSL or high accuracy, option “HH”, ± 0.08% BSL Setting Accuracy(Span/Zero): ± 0.5% full scale typical, ± 1.0% full scale maximum (± 1.0% full scale typical, ± 2.0% full scale maximum for ranges ≤ 2.5 psi) |
| Additional Features 1 | Ground Measurements |
| Additional Features 2 | None |
| Applications | Building and Maintenance, Fluid Measurement and Control, Waste Management |
| Bandwidth | DC to 1 kHz |
| Burst Pressure | 4x Full Scale |
| Cable Material | ETFE |
| Cable Sealing | Fused to case via molded Neoprene boot rated to 610 m (2000') depth |
| Compliance | RoHS |
| Electrical Connection Note | Integral lightning surge protection to IEC-61000-4-5 (Level 4) |
| Electrical Output | 4 to 20 mA |
| Electrical Output Note | None |
| Insulation Resistance | 100 MΩ |
| Materials, Wetted | 316 Stainless Steel |
| Measurement Pressure Type | Gauge |
| Measurement Pressure, Max | 15 psi |
| Measurement Pressure, Min | 0 psi |
| Output Signal | Current |
| Pressure Cycles | 1 million |
| Process Connection Size | 9/16 in |
| Process Connection Type | UNF Female |
| Proof Pressure | Up to 3000 psi |
| Response Time | 500 µs |
| Response Time Note | 500 usec, 0 to 90% step change |
| Shock | 50 g, 11 ms, half-sine horizontal and vertical axis |
| Stability | ± 0.1% |
| Stability Note | Long Term Stability (1 year.): ± 0.1% full scale typical |
| Supply Power Note | 10 to 30 Vdc [(10 to 20 Vdc above 105°C (229°F)] maximum loop res Ω = (Vs-10) x 50 |
| Supply Voltage | 10 to 30 Vdc |
| Thermal Effect on Span error, Max | ± 0.3% span |
| Thermal Effect on Zero error, Max | ± 0.3% span , ± 0.3% span |
| Vibration | ± 20 g |
| Weight | 285 g |
