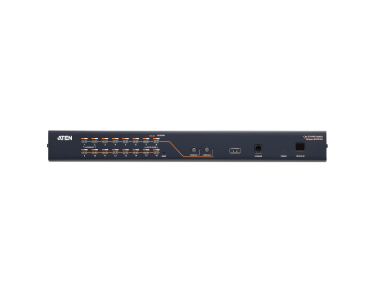

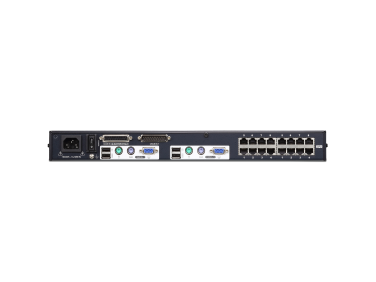

2-Console 16-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch

  • NG # 03835-HW-ATEN-010

  • MF # KH2516A

The KH2516A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (two bus). Operators working at up to two consoles can independently and simultaneously take control of up to 16 computers. By daisy chaining up to 15 additional switches, as many as 256 computers can be controlled from the original KVM consoles.

Manufactured By :
ATEN
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This switch has been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.


For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters. Another advantage found in these switches is Full HD video quality – extending the distance to the servers to up to 30 m at a resolution of 1920 x 1200

Specification

  • Two KVM consoles independently and simultaneously control up to 16 directly connected computers
  • By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console
  • Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
  • Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
  • OSD Backup/Restore feature – enables the administrator to back up the switch's configuration and user profile information
  • Configure port access rights for users on a port - by - port basis
  • Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes
  • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
  • Multiplatform support – Windows, Linux, Mac and Sun
  • Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types
  • Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
  • Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
  • Adapter ID
  • Firmware Upgradeable
