RFQ

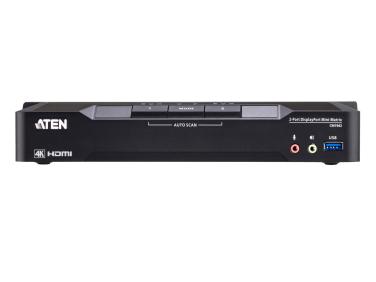

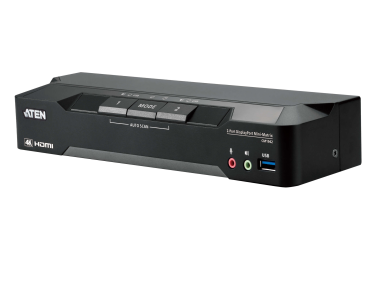

2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch

  • NG # 03843-HW-ATEN-018

  • MF # CM1942

With hybrid working evolving to become the standard in the new normal, the key to tackling challenges is to elevate multitasking abilities. When it comes to performing multiple tasks simultaneously, ergonomics is what assures productivity. And when communicating with dispersed remote teams, effective collaboration tools are crucial.

Manufactured By :
ATEN
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Re-imagine your workspace with the CM1942 – a future-proof mini matrix KVM switch featuring flexible and boundless KVM switching between two computers/displays to maximize workstation efficiency. Incorporating speedy peripheral data sharing, audio mixer, multi-screen efficiency and hotdesking agility, the CM1942 promotes a productive yet better normal with streamlined desktop workflows for both desktop tasks and collaborative work.

Specification

  • One dual-view USB / HDMI console controls two DisplayPort computers and two USB 3.1 Gen 1 peripherals
  • Supports superior video quality – resolutions up to 4K DCI (4096 x 2160 @ 60 Hz)
  • Two PC Operation Modes:
    - Single PC Mode – allows content of the PC with current KVM focus to be displayed over both monitors
    - Dual PC Mode – allows content of two PCs to be displayed separately on two monitors regardless of the KVM focus
  • Computer selection via pushbuttons, hotkeys, mouse wheel, mouse cursor, and remote port selector
  • Boundless Switching – allows the mouse cursor to move across screen borders for quick switching between video sources
  • Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports
  • Audio Mixer Mode – mixes up to two audio sources as one audio output
  • DisplayPort 1.2 , HDMI, and HDCP compliant
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Power on detection
  • Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
  • Console keyboard emulation / bypass feature supports most multimedia keyboards
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
