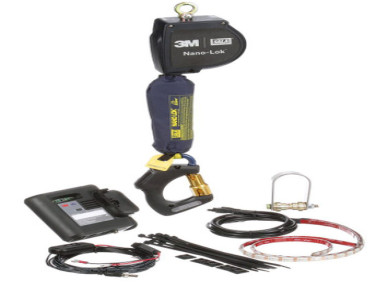

3M DBI-SALA Nano-Lok Connected Order Picker SRL System, SKU 3100273

  • NG # 0855-HW-3M-110

  • MF # 3100273

The 3M DBI-SALA Nano-Lok™ Connected Order Picker SRL System, SKU 3100273 is a smart, connected fall-protection solution designed specifically for workers operating order-picking vehicles. The system combines a self-retracting lifeline with sensing and visual/audible alert technology to help improve worker tie-off compliance and situational awareness.

Manufactured By :
3M
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The 3M™ DBI-SALA® Nano-Lok™ Connected Order Picker SRL is a smart connected fall protection system that can sense a worker’s presence on an order picker and detects their tie off status. The system provides workers and site safety managers with real-time visual and audible feedback based on tie-off status while on an order picker. An innovative and connected solution designed to promote safety & situational awareness for workers through: Multi-Sensor Technology which detects a workers presence on an order picker as well as their tie-off status to their harness dorsal D-ring and gate closure and lock detection.

The system also incorporates Bluetooth™ communication to relay tie-off status between the hook and overhead box which enables the alert system to provide real-time tie-off status to workers, peers, and site safety. The alert system incorporates optimally placed visual LED lights on the vehicle in addition to an audible alert from the overhead box to remind the worker when they are not tied-off.

Specification

SpecificationDetails
Manufacturer3M
BrandDBI-SALA®
Product SeriesNano-Lok™ Connected Order Picker
Model / SKU3100273
Product TypeConnected Order Picker Self-Retracting Lifeline System
System TypeAlert System
Lifeline Length11 ft. (3.35 m)
Lifeline MaterialDyneema® abrasion-resistant webbing
Anchor ConnectionCab-mount carabiner
Harness ConnectionConnected/sensing carabiner
Maximum User Capacity310 lb. (140.6 kg)
Brake SystemQuick-activating speed-sensing brake
Energy AbsorberHigh-capacity energy absorber
Carabiner BatteryReplaceable CR2032 coin-cell battery
Alert TypeVisual and audible
System PowerSensor box and feedback lights powered by order picker
Status IndicationRed = not tied off; Green = securely tied off
ConnectivityConnected sensing technology
Fall Protection ClassificationANSI/ASSP Z359.14-2021 Class 1
Applicable OSHA StandardsOSHA 29 CFR 1910.140 and 1926.502
CSA StandardCSA Z259.2.2-17
Typical ApplicationOrder-picker fall protection
