NG # 03664-HW-AAE-041

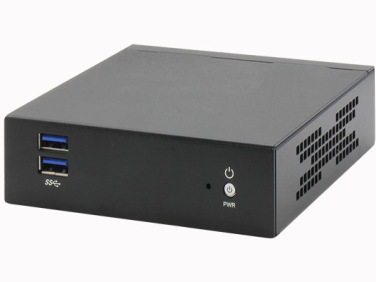

FWS-2277 Compact Desktop Network Appliance with Intel® Apollo Lake Processor
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe FWS-2277 from AAEON is a compact networking platform that delivers on flexibility and capabilities. Capable of powering network functions including Unified Threat Management (UTM), VPN, and NGFW, the system is the perfect solution for setting up remote access points for small networks, such as SD-WAN and work from home. The system features two Gigabit LAN ports and has both Wi-Fi and Bluetooth certification, providing excellent coverage to connect with any device. The system also features a rugged metal construction perfect for Small Office/Home Office (SOHO) deployments.
| SYSTEM | |
| Form Factor | Desktop Network Appliance |
| processor | Intel® Celeron® Processor N3350 SoC |
| Chipset | SoC |
| System Memory | Onboard LPDDR4, 4GB |
| NETWORK | |
| Ethernet | Intel® Ethernet Controller I210, GbE x 2 |
| DISPLAY | |
| Graphics Controller | Intel® UHD Graphics |
| Connector | HDMI x 1 |
| STORAGE | |
| CF/CFast/mSATA | eMMC 16G |
| INTERNAL/ EXPANSION INTERFACE | |
| Mini-PCIe Slot | Mini-Card Full Size Slot x1 |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 steps by software programmable |
| Software Button | GPIO Programmable push button x 1 |
| TPM | Optional Infineon.SLB9665TT2.0(FW5.63) |
| GPIO | (4 bits input, 4bits output optional) |
| Fan | Fan-less |
| MTBF (hours) | TBD |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | 12V DC Power Input Connector non-lock, 24W power adapter |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C) |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 10%~80% relative humidity, non-condensing |
| Storage Humidity | 10%~80% @40°C; non-condensing |
| Vibration | 0.5 Grms/ 5 ~ 500Hz / operation (mSATA) 1.5 Grms/ 5 ~ 500Hz / non-operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non-operation |
| Dimension (W x D x H) | 4.53’’ x4.53’’ x 1.26’’(115mm x115mm x 32mm) |
| I/O | |
| Front Panel | USB 3.2 Gen 1 x 2 Power Button x 1 Reset Button x 1 |
| Rear Panel | DC Power Input Connector non-lock x 1 1GbE RJ45 Ports x 2 HDMI x 1 |
