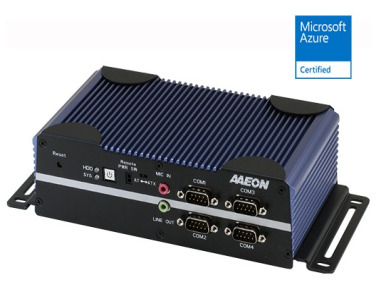

AAEON BOXER-6616 Fanless Embedded controller

  • NG # 03644-HW-AAE-021

BOXER-6616 Fanless Embedded controller with Intel® Celeron® Processor N3350/N4200

Manufactured By :
AAEON
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

A major developer of Industry 4.0 computing solutions, AAEON launches the BOXER-6616, a low-power embedded PC perfect for applications in digital signage, building control and factory automation. With a wide voltage input of 9-24V, and powered by the newest ApolloLake CPU, the BOXER-6616 is perfect for entry-level rugged industrial uses as it is compact and affords minimal power consumption (with a capped limit of 17 watts) whilst effectively enhancing system performance at an affordable price.

Specification

SYSTEM
CPUIntel® Celeron® N3350, 2.4 GHz
ChipsetIntel® System on Chip
System MemoryDDR3L 1866, Single Channel SODIMM x 1, Non-ECC (Max.8GB, up to 1600MHz)
Display InterfaceHDMI (max. 2048 x 1152), VGA (max. 2048 x 1152)
Storage DevicemSATA, HDD/SSD
EthernetIntel® I211, 10/100/1000Base-TX x 2
I/ORS-232/422/485 x 2
RS-232 x 4
USB 3.2 Gen 1 x 4
VGA x 1
HDMI x 1
LAN x 2
Remote On/Off x 1
Reset Button x 1
AT/ATX DIP Switch
Mic-In x 1
Line-Out x 1
Antenna holes x 1
Power button
Power input
ExpansionFull-size Mini-Card x 1 (PCIE + USB, w/SIM slot)
Half-size Mini-Card x 1 (mSATA + USB)
IndicatorPower LED
HDD active LED
OS supportWindows® 10 IoT Ent LTSC 2019 64 bit
Ubuntu 16.04 above
POWER SUPPLY
Power Requirement9-24V with 3-pin terminal block
MECHANICAL
MountingWallmount
DIN Rail (Mounting kit is optional)
Dimensions (W x H x D)197mm(W) x 55mm(H) x 110mm(D)
Gross Weight6.6 lb (2.8 kg)
Net Weight4.4 lb (2 kg)
ENVIRONMENTAL
Operating Temperature-4°F ~ 158°F (-20°C ~ 70°C) with W.T. SSD/HDD/mSATA (according to IEC682-14 with 0.5 m/s AirFlow; with industrial devices)
Storage Temperature-4°F ~ 158°F (-20°C ~ 70°C)
Storage Humidity95% @ 40°C, non-condensing
Anti-Vibration3 Grms/ 5 ~ 500Hz/ operation – mSATA/SSD
1 Grms/ 5~ 500Hz/ operation – HDD
CertificationCE/FCC class A
