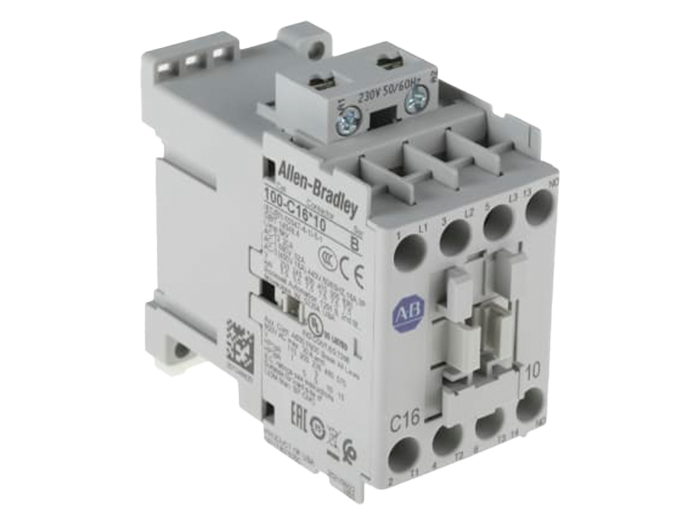

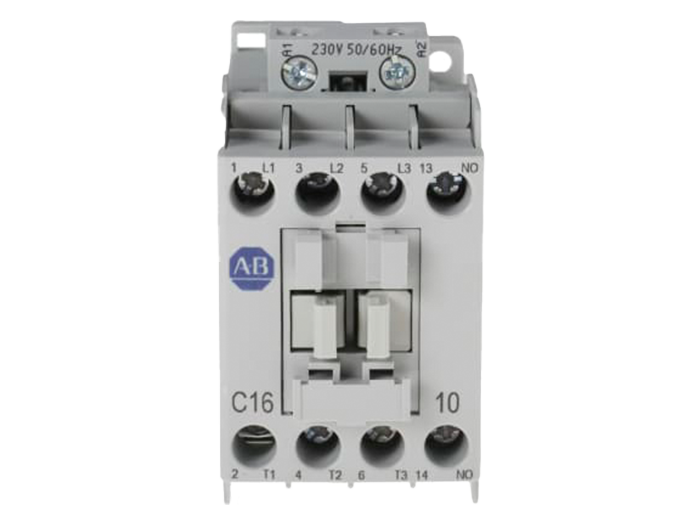

Allen Bradley 100 Series 100C Contactor, 230 V ac Coil, 3-Pole, 16 A, 7.5 kW, 3NO, 690 V ac

  • NG # 02693-HW-ALBR-032

  • MF # 100-C16KF10

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Allen Bradley 100-C AC Coil Operating Contactors


Experience greater efficiency, reliability, and enhanced performance with the compact yet powerful 100-C series of contactors by Allen Bradley.


These space-saving IEC contactors offer high switching power, ensuring application versatility and the ability to handle the high starting currents of modern motors and other loads. They have low power consumption and offer high connection reliability and ease-of-wiring due to having two separate power connections per pole, saving you valuable time and money. They are made of environmentally friendly materials and are RoHs compliant for added peace-of-mind.


100-C series contactors have reversible coil terminals, offer front and side mounting of auxiliary contacts, and can be attached to a 35mm DIN Rail mount or panel mounted. Breadth of line is 9...97 A. These contactors provide IP2X finger protection to prevent risk of injury to operators and risk of damage to the device. They are compatible with electronic overload relays and bimetallic relays. This series also conveniently offers common accessories for all contactor sizes to give you a perfectly integrated system.


Features:


• Max Switching Voltage 690V (Rated Voltage) AC3
• Coil Nominal AC Power 8 to 16 VA (Hold in); 70 to 200VA (Inrush)
• Electrical Life: 1.3 Million Operations (400V)
• 3 pole, 1 NO auxiliary contact on sizes 4 to 11kW


Standards: IEC947, EN60 947, VDE0660, UL508, CSA22.2.


Approvals: UL, CSA


The 100-C16KF10 IEC contactor by Allen Bradley is a 3-pole contactor with a contact current rating of 16A, and a coil voltage of 230V ac. It has a power rating of 7.5kW and contact voltage rating of 690V ac. It has 1 NO (Normally Open) Auxiliary Contact and screw terminals. Coil termination is line side.


What is a contactor?


Much like relays, a contactor is an electromagnetic device which is designed to switch electrical current through its contacts. It can switch a larger amount of electrical power than normal relays and can therefore be used for more heavy-duty, larger-scale applications, such as switching several different circuits simultaneously. It can also be controlled remotely and can be used for logic controlling to serve different functions, such as turning on some things at the same time as turning off others. Contactors feature high coil voltages and are able to switch more than 15 amperes, and they also have more input and output options than relays. They are frequently used to control electric motors and lighting systems. They contain a coil or electromagnet which opens or closes the contacts when the electrical current passes through the contactor.


Allen Bradley offer a variety of motor control products including IEC and NEMA contactors, as well as many compatible accessories, to suit your requirements and deliver maximum performance.



Allen Bradley MCS (Modular Control System) Contactors:


MCS is a modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3.


MCS features:


• A wide range of accessories available to cater for many diverse needs
• The ease of assembly, installation and modification provides high cost-efficiency and can reduce the number of parts which need to be held
• The compact size of the component parts offers reduction in enclosure volume required, as well as modern design and weight savings
• A modular design concept and an easy to fit 'clip-in' method
• Simple and fast DIN Rail and Surface Mounting

Specification

Coil Voltage230 V ac
Number of Poles3
Contact Voltage Rating690 V ac
Contact Current Rating16 A
Series100C
Range100 Series
Power Rating7.5 kW
Normal State Configuration3NO
Number Of Auxiliary Contacts1
Terminal TypeScrew
Length81mm
Width45mm
Depth86.5mm
Maximum Operating Temperature+60°C
Minimum Operating Temperature-25°C

Other Allen Bradley Products

Allen Bradley 1761 Series PLC Cable for Use with MicroLogix Series, RS232
Allen Bradley Computer & Electronics 02700-HW-ALBR-039

Allen Bradley Inverter Drive, 18.5 kW, 3 Phase, 400 V ac, 37 A, PowerFlex 525 Series
Allen Bradley Computer & Electronics 02740-HW-ALBR-079

Allen Bradley 440R / MSR125H/HP Two Hand Control Safety Relay, 24V ac/dc, Dual-Channel, 2 Safety Contacts
Allen Bradley Computer & Electronics 02746-HW-ALBR-085

Allen Bradley Guardmaster 440-R Series Input/Output Module, 1 Inputs, 6 Outputs, 24 V dc, 4NO/2NC
Allen Bradley Computer & Electronics 02692-HW-ALBR-031

Allen‑Bradley 1762-L40AWAR MicroLogix 1200 40 (Discontinued)
Allen Bradley Computer & Electronics 00100-HW-ALBR-043 1762-L40AWAR

Allen Bradley Micro 800 Series PLC Power Supply for Use with Micro800 Series
Allen Bradley Computer & Electronics 02682-HW-ALBR-021

Allen Bradley Inverter Drive, 0.75 kW, 3 Phase, 400 V ac, 2.3 A, PowerFlex 40 Series
Allen Bradley Computer & Electronics 02757-HW-ALBR-096

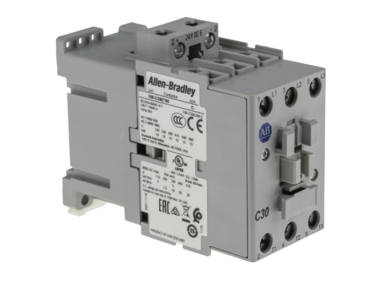

Allen Bradley 100 Series 100C Contactor, 24 V dc Coil, 3-Pole, 30 A, 15 kW, 3NO, 690 V ac
Allen Bradley Computer & Electronics 02724-HW-ALBR-063

Allen Bradley Guardmaster 440G-S Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Actuator Included
Allen Bradley Computer & Electronics 02703-HW-ALBR-042

Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, Plastic Housing, 2NC, 10m Cable
Allen Bradley Computer & Electronics 02737-HW-ALBR-076

Allen Bradley 440R / Guardmaster SI Safety Monitoring Safety Relay, 24V dc, Dual-Channel, 2 Safety Contacts
Allen Bradley Computer & Electronics 02732-HW-ALBR-071

Allen Bradley Micro850 Series PLC CPU for Use with Micro800 Series, Relay Output, 28-Input, AC, DC Input
Allen Bradley Computer & Electronics 02680-HW-ALBR-019

Allen Bradley SLC 500 Series PLC CPU for Use with SLC 500 Series, Digital Output, Digital Input
Allen Bradley Computer & Electronics 02695-HW-ALBR-034

Allen Bradley Temperature Monitoring Relay, DPST, DIN Rail
Allen Bradley Computer & Electronics 02727-HW-ALBR-066

Allen Bradley PLC I/O Module for Use with MicroLogix 1500 Series, Analogue
Allen Bradley Computer & Electronics 02719-HW-ALBR-058

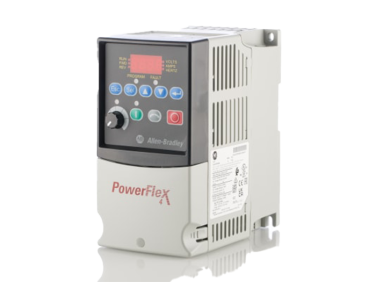

Allen Bradley Inverter Drive, 5.5 kW, 3 Phase, 480 V ac, 13 A, PowerFlex 4M Series
