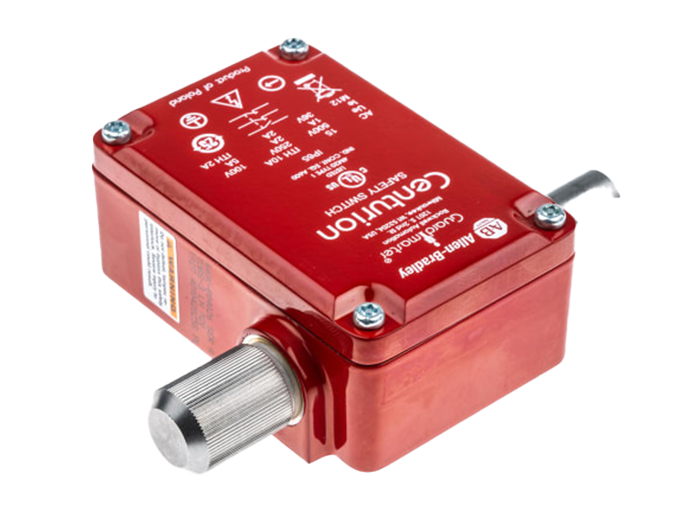

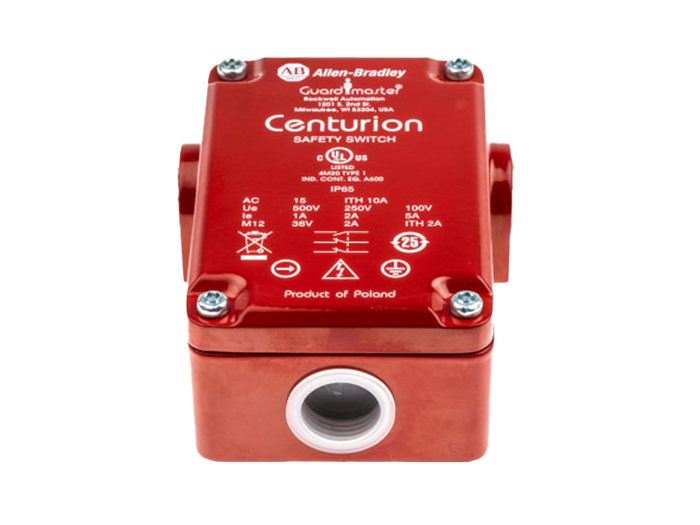

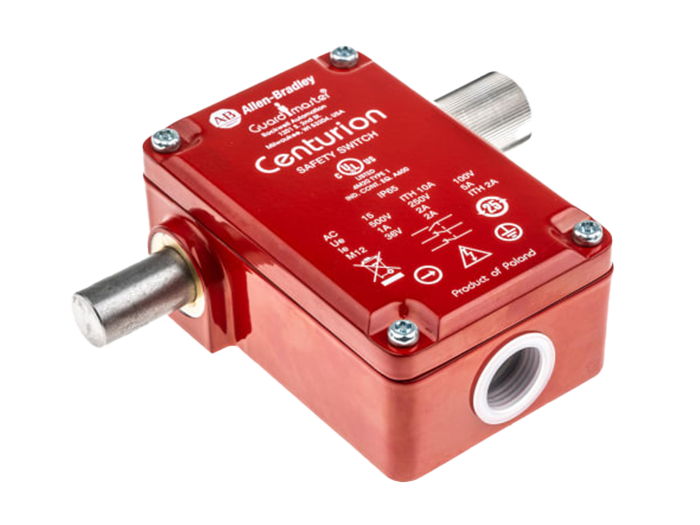

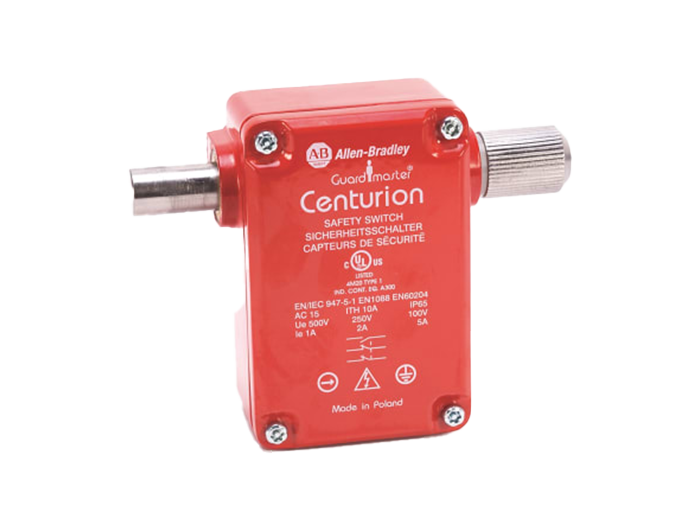

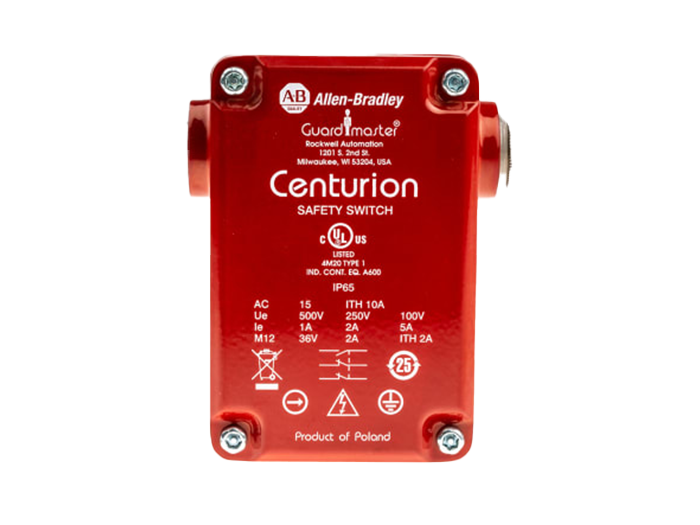

Allen Bradley Guardmaster 440K Safety Interlock Switch, 2NC/1NO, Tongue Actuator Included, Metal

  • NG # 02703-HW-ALBR-042

  • MF # 440K-B04026

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Centurion Timed Delay Bolt


Designed to provide a time delay after machine switch off prior to the guard being able to be opened
When the thumb wheel is manually rotated the interlock shaft is withdrawn, isolating the positive break safety contacts, removing the power to machinery
Only when completely withdrawn can equipment be accessed, typically taking 15-20 seconds
2N/C 1 N/O contacts, make-before-break
IP66 ingress protection
Simple operation & installation
Conforms to EN 1088, EN 292, EN 60947-5-1, EN 60204-1


Allen Bradley Guardmaster Centurion 440K-B04026 Safety-Rated Interlock Switch


This 440K-B04026 guard locking switch is positive mode and thumbwheel operated, and is ideally suited for use with simple machines which have short, constant run-down times due to the 20 second delay before the guard door can be opened. It is important that the unit is installed and operated correctly to ensure that the retractable shaft is not extended when the guard is open.


This durable safety switch has Break Before Make Action (opens the first set of contacts before closing new contacts). Actuator type is Left Hand. It features M20 Conduit Entry and has an operating temperature of -25°C to +80°C. Thermal current rating is 10A and it has a rated insulation voltage of 500V.


Features and Benefits


• 2NC Safety Contacts, 1NO Auxiliary
• Easy to operate and simplified installation for your convenience
• Perfect for use in heavy duty applications due to robust die-cast metal alloy housing material
• Locks the guard firmly closed until the operator manually rotates the thumbwheel, retracting the shaft from the guard door
• 15-20 second time delay before the guard can be released
• Isolates power to machine when the guard door is open, minimising risk of injury to personnel


Certifications


BG certified
SUVA certified
EN954-1
ISO13849-1
IEC/EN60204-1
NFPA79
EN1088
ISO14119
IEC/ EN60947-5-1
ANSI B11.19
AS4024.1
IP66 rated
CE certified
cULus approved


What is a Safety Interlock Switch?


A safety interlock switch is a device which keeps guard doors and gates securely locked to prevent access to areas where dangerous machinery may be in operation, minimalising the risk of injury to personnel and damage to machinery. They can also be used to monitor the status of the machine guard, and to ensure that machinery cannot start up or run while the guard door is open. They are often utilised in industrial applications, such as safeguarding factory production lines. They can vary in lock type, maximum current and voltage, and housing material. Safety-rated interlock switches are specifically designed to meet high safety standards. Allen Bradley Guardmaster switches are built to global standards to provide exceptional quality and reliability.

Specification

Lock StyleTongue
Normal State Configuration2NC/1NO
Lock TypeInterlock
Actuator IncludedYes
Safety Contacts2NC
Maximum AC Voltage600V
Maximum DC Voltage600V
Connection TypeM20
Housing MaterialMetal
RangeCenturion
IP RatingIP66
Number of Head Directions1
Series440K
Depth98mm
Maximum Current6A
Length64mm
Maximum Operating Temperature+80°C
Width40.5mm
Minimum Operating Temperature-25°C
Auxiliary Contacts1NO
