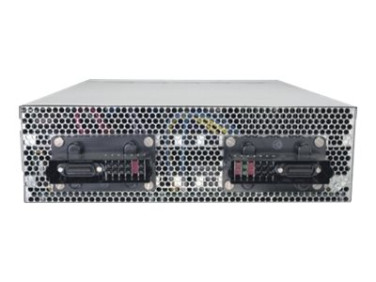

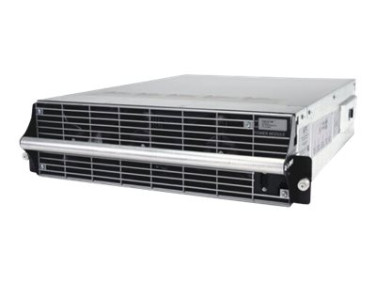

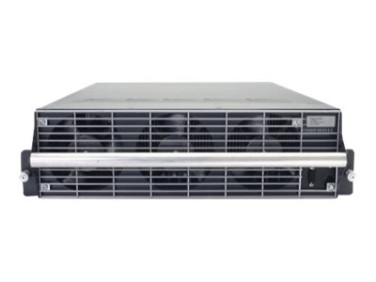

APC Symmetra PX Power Module - UPS - 10 kW - 10000 VA

  • NG # 2237-SW-APC-008

  • MF # SYPM10KF2

APC Symmetra PX Power Module - UPS (plug-in module) - AC 208 V - 10 kW - 10000 VA - 3-phase - no battery - 3U - black - for P/N: SY20K100F-NB, SY50K100F-NB, SY60K100F-NB, SY70K100F-NB, SY80K100F-NB, SY90K100F-NB

Manufactured By :
APC
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

High density, double-conversion on-line power protection with scalable runtime.

Specification

General
Device Type UPS - plug-in module
Height (Rack Units) 3U
Color Black
Power Device
Input Voltage AC 208 V
Input Voltage Range AC 177 - 239 V
Frequency Provided 60 Hz
Input Wiring 3-phase
Frequency Required 60 Hz
Output Voltage AC 208 V 60 Hz
Power Capacity 10 kW / 10000 VA
Output Waveform Sinewave
Efficiency 94.7%
Battery
Type No battery
Miscellaneous
Features Audible alarm
Compliant Standards UL, ISO 9001, cUL, UL 60950, ISO 14001, RoHS, FCC Part 15 A, REACH
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95%
Sound Emission 64 dBA
Dimensions & Weight
Width 19 in
Depth 27.6 in
Height 5.2 in
Weight 55.23 lbs
Dimensions & Weight (Shipping)
Shipping Width 23.4 in
Shipping Depth 31.3 in
Shipping Height 8.9 in
Shipping Weight 61.84 lbs
Compatibility Information
Designed For P/N: ISX20K20F, SY100K100F, SY100K100F-NB, SY10K100F, SY10K100F-NB, SY10K40F, SY20K100F-NB, SY20K40F, SY30K100F, SY30K40F, SY40K40F, SY50K100F, SY50K100F-NB, SY60K100F, SY60K100F-NB, SY70K100F, SY70K100F-NB, SY80K100F, SY80K100F-NB, SY90K100F, SY90K100F-NB
