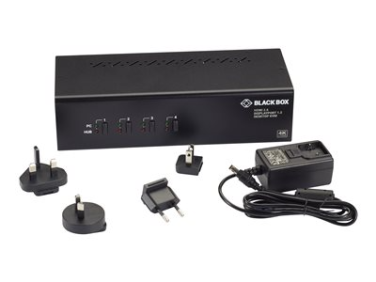

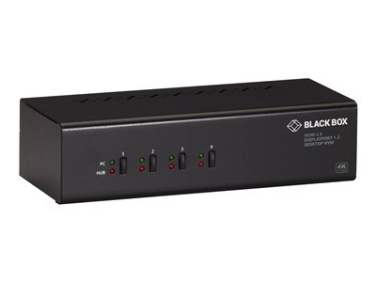

Black Box KV6224DPH - KVM / audio switch - 4 ports - TAA Compliant

  • NG # 03476-HW-BLACK-009

  • MF # KV6224DPH

Manufactured By :
Black Box
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Access four 4K mixed dual-monitor DisplayPort/HDMI computers and two shared USB 3.1 peripherals from a single workstation Dual 4K Monitor Support Share two 4K monitors between four mixed DisplayPort 1.2/HDMI 2.0 enabled computers using only one keyboard and mouse saving valuable desk space and increasing productivity. Ultra HD 4K60 Resolution DisplayPort 1.2 and HDMI 2.0 Technology delivers crystal-clear 4K at 60Hz Ultra HD resolution driving two large external 4K (DisplayPort or HDMI enabled) monitors. Advanced Keyboards and Mice Support for advanced keyboards and mice. Emulation technology allows complete versatility in dealing with the advanced functional requirements of today's keyboards and mice. From gaming mice/keyboards to advanced business mice/keyboards users will appreciate what this technology can do for them. Peripheral Sharing Share all your USB 3.1 Gen 1 (5Gbps) devices with ease with the separate built-in 2-port USB 3.1 Gen 1 (5Gbps). This allows the sharing of USB peripherals between each connected computer. Automatically switch connected USB devices to the selected computer. Total Multimedia Control Individual audio (mic/speaker) channels let you share independent audio from each of the connected computers allowing complete multimedia control between the different computers.

Specification

General
Device Type
KVM / audio switch - 4 ports
Enclosure Type
Desktop
Subtype
KVM
Ports
4 x KVM / audio
KVM Local Users Qty
1 local user
Keyboard / Mouse Interface
USB
Max Resolution
3840 x 2160 @ 60 Hz
Features
Firmware upgradable, built-in 2-port USB 3.0 hub
Compliant Standards
USB 1.1, USB 2.0, USB 3.0
Status Indicators
Port status
Expansion / Connectivity
Interfaces
1 x keyboard (USB) Type A console ¦ 1 x mouse (USB) Type A console ¦ 1 x HDMI console ¦ 1 x microphone mini-jack console ¦ 1 x audio mini-jack console ¦ 2 x USB 3.0 Type B ¦ 4 x HDMI ¦ 4 x microphone mini-jack ¦ 4 x audio mini-jack ¦ 2 x USB 3.0 Type A ¦ 1 x DisplayPort console ¦ 4 x DisplayPort
Power
Power Device
External power adapter
Power Provided
12 V - 3 A
Miscellaneous
Compliant Standards
FCC
TAA Compliant
Yes
Software / System Requirements
OS Required
Apple MacOS, Linux, Microsoft Windows XP / 7 / 8 / 10
Dimensions & Weight
Width
10 in
Depth
3.9 in
Height
2.6 in
Weight
2.65 lbs
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
