Honeywell CPO Plant Controller

  • NG # 00944-HW-HNWEL-064

CPO-PC410 is an Ethernet-based, freely programmable, and native BACnet® Building Controller (B-BC).

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

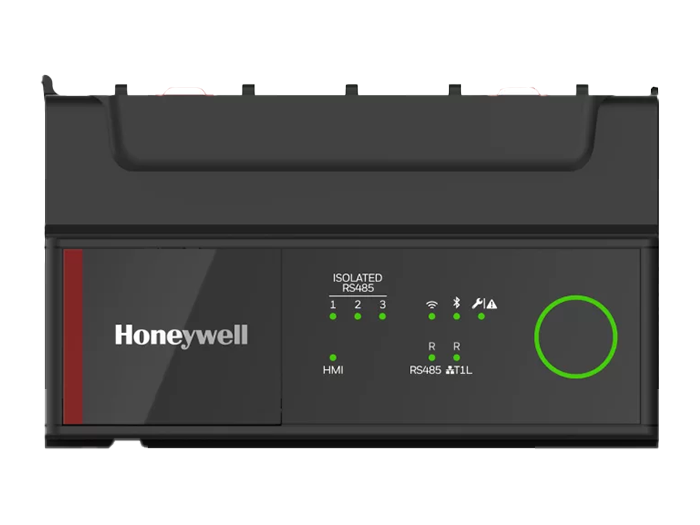

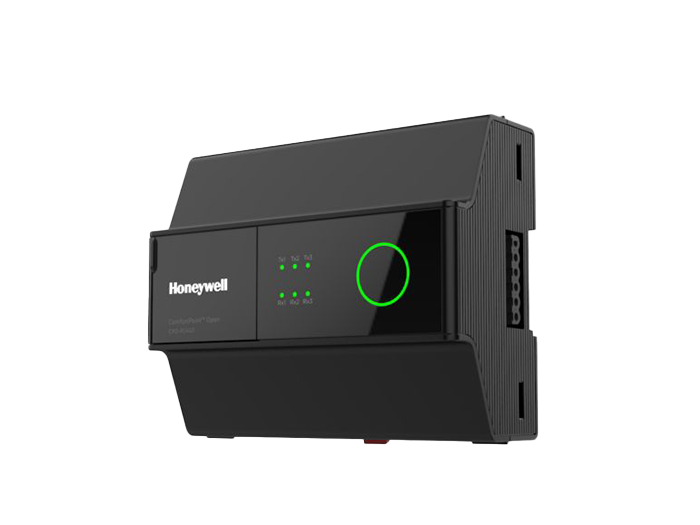

CPO-PC410 is an advanced plant controller in the ComfortPoint™ Open (CPO) Plant Controller platform. It is an Ethernet-based, freely programmable, and native BACnet® Building Controller (B-BC). CPO-PC410 is designed for a wide variety of complex applications. This device features numerous RS485 communication interfaces, two standard Ethernet interfaces, an MMI interface, and two USB interfaces. CPO-PC410 can be mounted on either a DIN rail or remote mounted in a horizontal or vertical position.

Specification

Specification

  • Conforms to BACnet Standard 135 protocol version 1.14 (ISO 16484-5).
  • Three pairs of LEDs indicating the transmission and reception (respectively)of data via the RS485 interfaces 1,2, and 3.
  • Ring LED to show the operational status of the controller.
  • Internal Ethernet switch with two external ports and status LEDs to allow quick connection of local Ethernet-based tools, remote IO, or additional IP based controllers and devices to reduce the number of IP drops.
  • An MMI interface to connect with the CPO-MMI device which helps to monitor and manage the controller data.
  • Four RS485 interfaces to support Panel bus, BACnet MS/TP, Field Bus, Modbus, M-Bus, CP-IO protocols, and C-Bus global data sharing.
  • Dual Core Processor to isolate BACnet IP network communications from DDC application and device communications.
  • Built-in advanced diagnostics software facilitating troubleshooting.
  • FRAM to store the live data for the controller including storing last known values when power is removed.
  • DDR3L for Random Access Memory to achieve twice the rate of data transfer with low power consumption.
  • EMMC for program storage and boot flash memory.
  • BACnet Trending with Backfill and storage up to 1M data samples.
  • UTF-8 and UCS-2 character encoding formats are supported.
  • Supports Peer-to-Peer communication.
  • A reset button to restore the factory default settings.
  • Removable screw-type terminal block.
  • Built-in Webserver with HTML5 graphics support.
  • Watchdog relay to enhance system reliability and safety.
  • A micro USB and USB Type A ports to quickly connect with a laptop and mobile/tablet devices.
