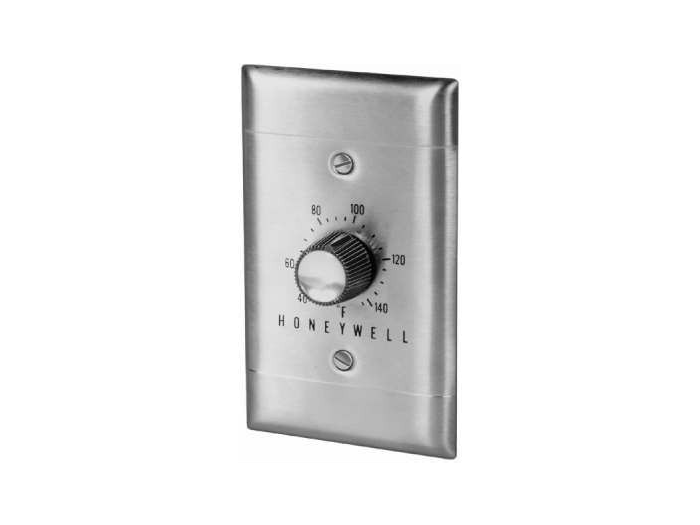

Honeywell S693 Manual Potentiometer

  • NG # 00987-HW-HNWEL-107

S963 manual potentiometers are used for the checkout of W973 logic panels and W975 satellite sequencers.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

S963 manual potentiometers are used for the checkout of W973 logic panels and W975 satellite sequencers.

Specification

Specification

  • Simulates the heat and cool ramp signal of a T7067 dual setpoint thermostat and the economizer low limit function
  • Consists of 2 potentiometers and a resistor assembly mounted in a test box
  • Provides a heat/cool ramp signal from less than 2V DC (min) to 16.6V DC (max)
  • Provides an economizer low limit signal from 4.0V DC (equivalent to 45 °F (7 °C) at the C7046 Discharge Sensor) to 4.5V DC (equivalent to 69 °F (21 °C)
  • Four test lead wires have color-coded bands with corresponding W973 terminal numbers
  • Lead wires have alligator clips for easy connection to W973 terminals
