NG # 00905-HW-HNWEL-025
The Honeywell IS-4500 FROG™ IP Video Door Phone System is a premium TCP/IP-based indoor video intercom designed for luxury residential apartments, gated communities, condominiums, and mixed-use developments. Designed by FROG™ Design, the ultra-slim indoor station features a 7-inch capacitive multi-touch LCD, an integrated 2 MP camera, and an elegant aluminum housing with a vandal-resistant glass front panel. It combines visitor management, video communication, security monitoring, messaging, and elevator control into a single intelligent platform
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteFrog™ IP Video Door Phone System is Designed to be easily integrated with MoMas™ Honeywell Smart Home Systems, thus providing complex developers the infinite possibilities of expandable intelligent community solutions. When there exists the abnormal zone, alarm notice pops up and abnormal zone is indicated The administrator device receives the alarm notice Alarm buzzing both onsite and at the management center. High quality silver anodized aluminum back cover fits various interior decorating styles.
The IS-4500 IP Video Door Phone is designed with ‘Elegant White' and built into an aluminum body with a 7" capacitive multi-touch screen. It is outfitted with flat vandal resistant glass panel and user-friendly graphical interface which delivers a high quality video identification. Meanwhile, it fits seamlessly on the wall: users won't see any screws either in the front or from the side angle, making the flush mounting almost perfect.
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | IS-4500 |
| Product Name | FROG™ IP Video Door Phone System |
| Product Type | Indoor IP Video Door Phone |
| Display | 7-inch TFT LCD Capacitive Multi-Touch Screen |
| Display Resolution | 1024 × 600 pixels |
| Display Colors | 16.7 Million Colors |
| Processor | Cortex-A8 ARM Processor (600 MHz) |
| Operating System | Linux 2.6 |
| Memory | 256 MB DDR3 RAM, 2 GB Flash |
| Camera | Integrated 2 MP CMOS Camera |
| Communication Protocol | SIP / TCP/IP |
| Network Interface | 100Base-TX Ethernet |
| Audio/Video Codec | H.264 Video, G.711 Audio |
| Touch Panel | Capacitive Touch Screen |
| Glass Hardness | 7H Vandal-Resistant Glass |
| Power Supply | 12 VDC, 3 A |
| Power Consumption | 4 W (Standby), 24 W (Maximum) |
| Operating Temperature | -10°C to +40°C |
| Operating Humidity | 0–80% RH |
| Dimensions | 196.5 × 148 × 16.5 mm |
| Weight | Approximately 500 g |
| Mounting | Surface Wall Mount |
| Platform Software | ISNET-P1-C, ISNET-P2-C, ISS-AMS |
Honeywell IS-4500 Frog IP Video Door Phone System Manual
Honeywell Temperature & Humidity Sensor, Digital Output, Serial-I2C, ±3%, 8 Pins
Honeywell Room Pressure Indicator
Honeywell HIH-5030/5031 Series Humidity Sensor, Analogue Output, Surface Mount, Analogue, ±3%RH, 3 Pins

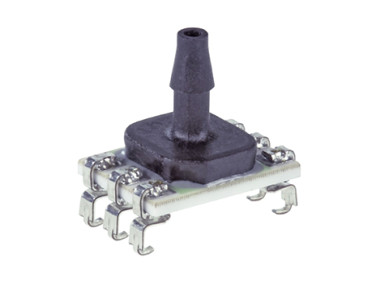

Honeywell Absolute Pressure Sensor, 103kPa Operating Max, PCB Mount, 8-Pin, 207kPa Overload Max, DIP
