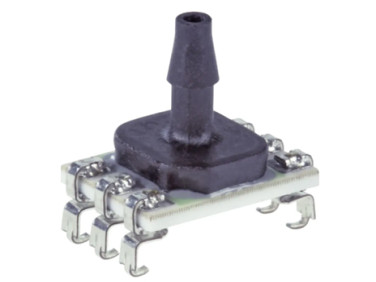

Honeywell Gauge Pressure Sensor, 1034kPa Operating Max, PCB Mount, 6-Pin, 1724kPa Overload Max, SMT

  • NG # 03070-HW-HONEYWELL-318

  • MF # ABPMANV150PGAA5

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Honeywell ABP Series are piezoresistive silicon pressure sensors offering a ratio metric analog or digital output for reading pressure over the specified full-scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and accuracy errors (which include nonlinearity, repeatability, and hysteresis) using an onboard Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards

Measures gage and differential pressures

Total Error Band (see Figure 1): ±1.5 %FSS

Liquid media option: Allows for wet/wet operation on dual-ported devices

Industry-leading long-term stability: ±0.25 %FSS

Industry-leading accuracy: ±0.25 %FSS BFSL

As small as 8 mm x 7 mm

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specification

Maximum Overload Pressure1724kPa
Mounting TypePCB Mount
Package TypeSMT
Pin Count6
Maximum Operating Pressure1034kPa
