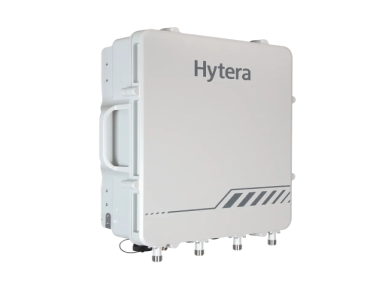

Hytera DS-6250S DMR Trunking Cube Base Station

  • NG # 03716-HW-HYT-037

Hytera DS-6250S DMR Trunking Cube Base Station is a next-generation compact base station based on DMR Tier lll protocol.

Manufactured By :
Hytera
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

With a small form factor and high integration, it is cost-effective and powerful. Built on multi-carrier and SDR technologies, one base station is expandable to 8 carriers (UHF) or 4 carriers (VHF). And all frequencies and carrier capacity can be customized via software as you need. The DS-6250S exceeds your expectations from deployment to networking. IP68 rated, the DS-6250S is ideally suited for the harshest locations, indoors or outdoors. It offers flexible installation options, such as mounting on towers, walls and vehicles. which brings about wider coverage and dead zone elimination.

Specification



BS Specificaition
Standard ComplianceDMR
Frequency RangeUHF1: 415-445MHz; VHF: 136-174MHz
Carrier Capacity8 (extendable to 24 carriers at most)
Power SupplyDC 48V / AC 220V with power adapter
Power ConsumptionUHF: ≤350W; VHF: ≤210W
Clock SynchronizationGPS/Beidou/Glonass/Galileo/PTP
Dimensions(H×W×D) mm447mm×357mm×125mm
Weight≤16.7kg
Operating Temperature-40 to +55℃
Storage Temperature-40 to +85℃
Relative Humidity5% to 100% RH
IP RatingIP68
Wind Resistant240km/h
Lightning Protection20kA
Mean Time Between Failures(MTBF)≥100000h
Receiver
RX Sensitivity(Static)-122dBm@BER5%
Transmitter
TX PowerUHF:; 2 -carrier: ≤50W; 4 -carrier: ≤25W; 8 -carrier: ≤10W; VHF:; 1 -carrier:≤ 50W; 2 -carrier:≤ 25W; 4 -carrier:≤ 10W
