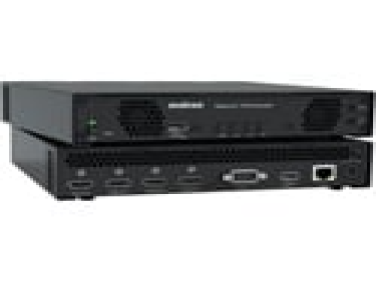

Matrox MVX-D6152-4 Maevex Quad 4K Enterprise Decoder

  • NG # 03260-HW-Matrox-009

  • MF # MVX-D6152-4

Manufactured By :
Matrox
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Showcase Content Anywhere, In Any Format
The Matrox® Maevex 6152 quad 4K decoder complements the entire Maevex product line. Efficiently decoding up to four 4K streams, or many more lower resolution streams, the Maevex 6152 decoder introduces plenty of options and advantages for multi-screen decoding.

The Maevex 6152 decoder is also compatible with the popular Matrox Maevex PowerStream Plus AV-over-IP management software, which allows for complete control of the entire Maevex network.

Complete reach and control
Discover devices, manage content, access hardware, and monitor all streams and recordings from any location on the network via the robust Maevex PowerStream Plus software. Included with the purchase of Maevex hardware, PowerStream Plus renders both generations of Maevex products entirely monitorable, configurable, manageable, and updateable via an intuitive and easy-to-use application. PowerStream Plus can be installed on any network-connected computer.

Easily tailor operations by integrating PowerStream Plus features into existing applications or create new software applications with the PowerStream Plus SDK-available for both Windows® and Linux®. A REST API is also available for more flexible and portable software development and more direct access to Maevex devices.

Specification

  • Features:

    • Complete reach and control
    • Fully customizable


  • Specifications:

    • Connectivity:
    • Video Output Number of channels: 4
    • Formats: HDMI (Type A) zero latency pass-through
    • Audio Output
      4x HDMI (Type A) digital LPCM two-channel stereo audio
      1x 3.5 mm line-out
    • Network Connector: 1x RJ45 with status LED indicators
    • USB Ports: 1x USB 2.0 (front), 1x USB 3.0 (back)
    • RS-232: 1x for IP to RS-232 control

      Performance:
    • Color Space and Chroma Sub-Sampling: YUV 4:0:0, 4:2:0, 4:2:2, or 4:4:4 to RGB 4:4:4 8-bit
    • Video and Audio Processing
      Audio Encoding Format: MPEG-4 AAC-LC/HEv1/HEv2
      Audio Sampling Frequency: 32 kHz, 44.1 kHz, 48 kHz
      Audio Bitrates: Up to 144 Kbps (AAC-HEv2), Up to 288 Kbps (AAC-HEv1), Up to 576 Kbps (AAC-LC)

      Codec
    • Encoding Level: Up to 5.2
    • Video Encoding Formats: H.264/MPEG-4 Part 10 (AVC)
    • Encoding Profiles
      Baseline (BP)
      Main (MP)
      High (HiP)
      High 10 (Hi10P)
      High 4:2:2 (Hi422P)
      CAVLC 4:4:4 intra (44)
      High 4:4:4 predictive profile separate plane (Hi444PP)
    • Decoder Bitrates Range: 50 Kbps to 120 Mbps (per stream)

      Network
    • Network Standard: 100/1,000 base-T Ethernet, Auto speed, Half/full duplex
    • Routing Scheme: Unicast, Multicast
    • IP Addressing: IPv4, DHCP (default) and static IP
    • Streaming Protocols
      RTSP (TCP), RTCP & RTP (UDP) - all required
      RTSP over TCP (interleaved)
      SRT over UDP
      MPEG2.TS over UDP
    • Command and Control: HTTPS over TCP, UPnP (discovery)

      Physical
    • Product Dimensions: 8.53 (L) x 7.52 (W) x 1.68 (H) inches
    • Noise Emission: ~25 dB at full decode capacity


  • Item Includes:

    • 1x Maevex 6152 Quad 4K Decoder Appliance
    • 1x 100-240 V a.c. in, 12 V d.c. out, 60W power supply
    • 1x Power cords (US, EU, UK, Aus/NZ)
    • 1x DIN4 locking connector
