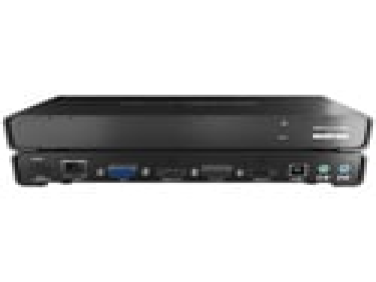

Matrox MVX-E5150F Maevex Video over IP Encoder

NG # 03259-HW-Matrox-008
MF # MVX-E5150F

Manufactured By :

Matrox

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Matrox Maevex video distribution over IP solution includes the Maevex 5100 Series encoders and decoders that can extend or record up to 1080p60 video and audio over a standard IP network at user-defined low bitrates for excellent quality and minimal network bandwidth consumption. The Maevex MVX-E5150F encoder streams or records high-quality video and audio and uses the H.264 video compression standard. It can stream to Maevex decoders or any device or PC that supports the required network protocols. It can also record to a shared network or NAS drive. The robust Maevex PowerStream Plus software application is included with the hardware and is used to remotely discover, manage, and adjust the Maevex network and lets administrators conveniently define multiple stream parameters and balance network bandwidth consumption and quality. The PowerStream Plus API and Maevex 5100 Series REST API are also available and grant integrators and developers the ability to build personalized Maevex control applications and/or to integrate Maevex functionality in existing or even third-party applications.

Specification

Features:
- Encode/record up to 1080p60 and 1920x1200 video and audio
- H.264 compression for high-quality, low-bandwidth AV-over-IP
- Support for wide-screen and standard aspect ratios and many resolutions
- Scale streams before distribution for lower bandwidth consumption
- HDMI or analog audio support
- Open encoding allows for third-party software decode (e.g. VLC)
- Record up to 1080p60/1920x1200 to NAS or shared network drive
- Control frequency and duration of recording
- Schedule the start time and date of recording sessions
- Recorded user-defined file name includes timestamp for easy file management
- Operates on standard 100/1000Mb Ethernet networks
- Auto-detect and discover Maevex units on subnet (DHCP server required)
- Full/half-duplex mode and static IP address support
- CBR, VBR support
- Network bitrate control (100 Kbps - 25 Mbps)
- Play back pre-recorded content at the decoder in case of a network disruption or if encoder stops streaming (e.g. loss of power)
- Programmable time delay before failsafe activates
- Resumes last streaming activity upon power return
Specifications:
- Video Input
- HDMI with digital L-PCM audio
- DVI via DVI-to-HDMI adapter
- Resolutions up to 1920x1080p60, 1920x1200(60Hz) and many more wide-screen and standard-definition resolutions

  Video Output
- HDMI with digital L-PCM audio, local pass-through w/o scaling or confidence preview w/ optional scaling
- DVI via HDMI to DVI-D adapter, local pass-through w/o scaling or confidence preview w/ optional scaling
- HD15, Analog VGA - confidence preview w/ optional scaling
- Resolutions up to 1920x1080p60, 1920x1200(60Hz), 1920x1080i50, 1920x1080i60
- Procamp control: contrast, brightness, saturation, hue
- Scaled output (i.e., 1080p60 input/720p60 scaled output)
- Audio Line-In: 3.5mm analog stereo audio
- Audio Line-Out (Local Pass-Through): 3.5mm analog stereo audio
- Network Connector: RJ45

  Video Encoding / Decoding
- Single-Channel HD: Up to 1920x1080p60 and 1920x1200(56Hz) and many more wide-screen and standard-definition resolutions
- Compression Standard: H.264/MPEG-4 Part 10 (AVC)
- Profiles: Main
- Levels: Up to 4.2
- Bitrates: 100 Kbps to 25 Mbps
- Rate Control: CBR, VBR, Favor Speed, Favor Quality, Adjustable GOP (Group Of Pictures) Size

  Encoder Recording Mode
- Record any supported resolution to NAS or shared network drive
- File format: .mp4
- User definable filename prefix
- Auto timestamp in filename
- Programmable:
  Recording start date / time and duration
  Maximum file length
  File frequency

  Audio Encoding/Decoding
- Compression Standard: MPEG-4 AAC-LC
- Channels: 2 channel (stereo), HDMI with digital L-PCM audio
- Analog Sample Frequency: 32, 44.1, and 48kHz
- Bitrates: 96, 128, 192, and 256 Kbps

  Networking Interface
- 100/1000base-T Ethernet: 1000 Mbps full duplex, 100 Mbps half/full duplex
- Streaming Protocols: RTSP/RTP/RTCP (all required) over UDP
- Command & Control Protocols: HTTPS
- IPV4 Support
- Unicast, Multicast and Multi Unicast
- DHCP (Default) / Fixed IP Address Support
- CAT5-or-Better Network Cables

  Power Supply
- 100-240V AC In, 5VDC Out, 15W
- DIN4 Locking Power Connector
- Power Cords Included: US, EU, UK

  Regulatory
- CE/FCC/VCCI/ICES/C-Tick/KCC Class B, ROHS/WEEE
- ROHS/WEEE

  Environmental
- Operating Temperature: 0 to 45 degrees Celsius
- Non-Operating Temperature: -40 to 55 degrees Celsius
- Operating Humidity: 20 to 80% (non-condensing)
- Non-Operating Humidity: 5 to 95% (non-condensing)

  MTBF
- Encoder: 135.05 years @ 40 degrees Celsius (excl. power supply)
- External Power Supply: 11.45 years @ 25 degrees Celsius, full load
- Fanless (no moving parts)

  Mechanical
- Dimensions Encoder: 21.59cm x 2.59cm x 10.16cm (8.50" x 1.02" x 4.00")
- Weight Encoder: 378g (excl. external power supply and power cords)
- Rackmountable with optional rackmount tray and accessories
- Encoder: dual density - 1u

  Software
- PowerStream Plus (free download)
- Compatible with Maevex 5100 Series and Maevex 6100 Series
- Network discovery
- Frame rate management
- Resolution control
- Scaling management
- Maevex network configuration & control
- Encoding and decoding control and manipulation
- Password protection
- Failsafe over network FW updates
- Third-party RS-232 connectivity
- Decoder Failsafe mode
  PowerStream Plus API for Windows and Linux1
- Full-access to entire feature set via API
- .NET 4.5.1 or higher, stand-alone library and Mono 5.2 or higher for Linux
  REST API1
- Available for lower-level development
  Supported Operating System:
- Microsoft Windows® 10 (64-bit)
- Windows Server® 2016
- Windows 7 (32-bit, 64-bit)
- Windows Server 2008 R2
Item Includes:
- 1x MVX-E5150F Maevix Encoder
- 1x CAT5E Ethernet cable, RJ45 male to male, 6'/182.88cm
- 1x DVI adapter - DVI-D male to HDMI female
- 1x 3.5mm analog stereo audio cable, male to male, 6'/182.88cm
- 1x Power supply and power cords (see "Power supply")
- 1x Quick setup guide and release notes (if applicable)

Other Matrox Products

Matrox Monarch EDGE Encoder Appliance with 4 SDI Inputs - 10-Bit Version

Matrox Computer & Electronics 03265-HW-Matrox-014

Matrox T2G-DP-MIF TripleHead2Go Thunderbolt/DisplayPort Multi-Display-PC and Mac

Matrox Computer & Electronics 03252-HW-Matrox-001

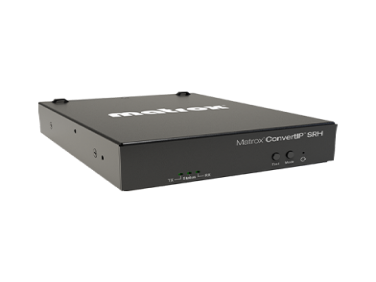

Matrox CONVERTIP SRH Single-Channel RJ45 HDMI-to-IP Converter
