Schneider Electric Galaxy VS - busbar plates kit

  • NG # 2225-SW-SCHNEIDER-010

  • MF # GVSOPT005

Schneider Electric Galaxy VS - Busbar plates kit - for P/N: GVSUPS25KFS, GVSUPS40K, GVSUPS40KGS, GVSUPS50KGS, GVSUPS60KGS, GVSUPS80KGS

Manufactured By :
Schneider Electric
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

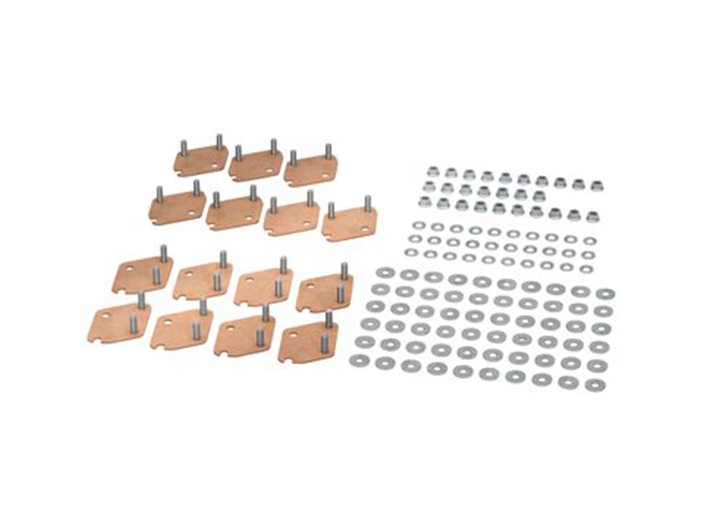

Option kit with 2-hole plates to be mounted on the UPS busbars. It allows the use of NEMA 2-hole cable lugs in the UPS.

Specification

General
Product Type Busbar plates kit
Package Content 7 NEMA 2 hole plates (output, DC+, N), 8 NEMA 2 hole plates (input, bypass, DC-), 30 M8 nuts, 30 M8 washers, 30 spring washers, 60 M8 x 24 flat washers
Width 11.8 in
Depth 11.8 in
Height 5.9 in
Weight 5.95 lbs
Miscellaneous
Features 2 holes
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Compatibility Information
Designed For P/N: GVSUPS100KGS, GVSUPS10KFS, GVSUPS15KFS, GVSUPS20KFS, GVSUPS20KGS, GVSUPS25KFS, GVSUPS30KFS, GVSUPS30KGS, GVSUPS40K, GVSUPS40KFS, GVSUPS40KGS, GVSUPS50KFS, GVSUPS50KGS, GVSUPS60KGS, GVSUPS80KGS
