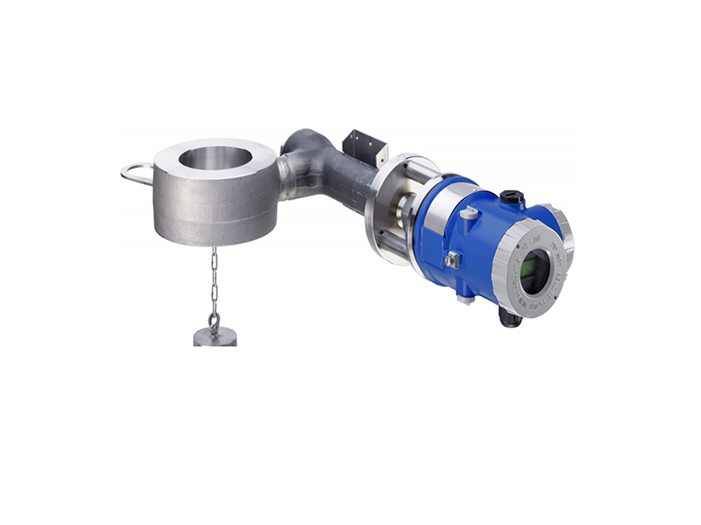

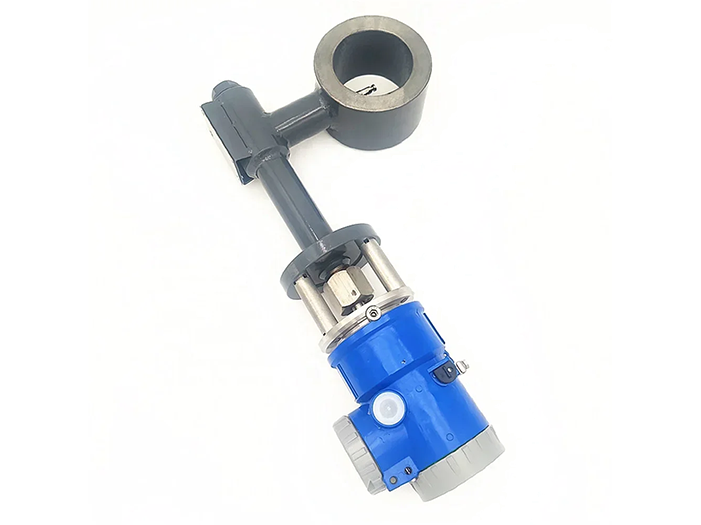

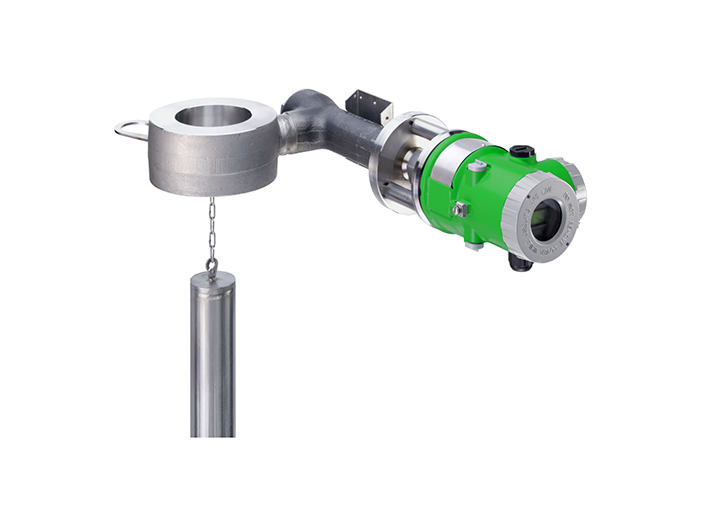

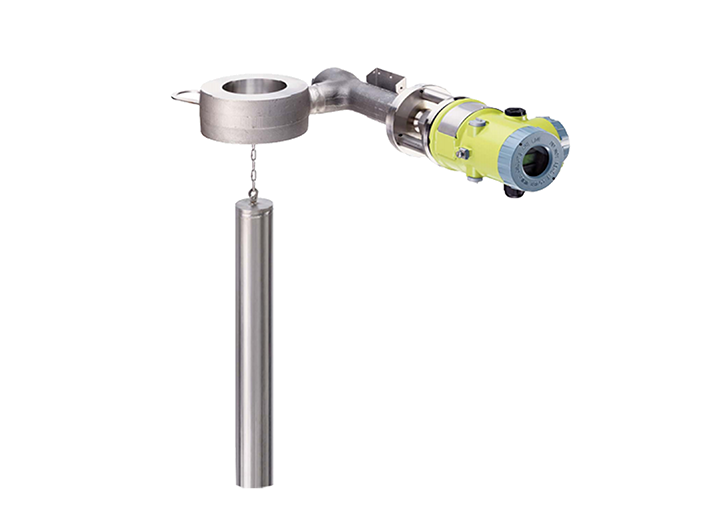

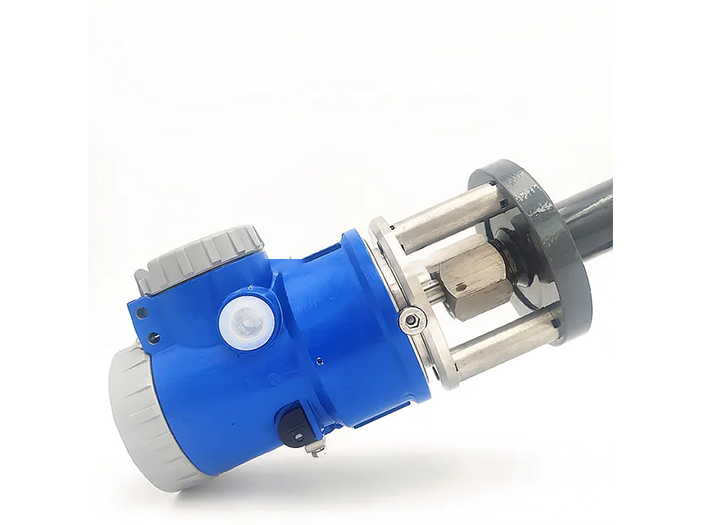

Schneider Float level transmitter 244LD

  • NG # 02093-HW-SCHNEIDER-004

Buoyancy transmitter, Level, digital, liquid level, interace level, liquid density measurement

Manufactured By :
Schneider Electric
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Range of product Level

Product or component type
Buoyancy transmitter

Product specific application
Liquid level measurement
Interface level measurement
Density measurement

[Us] rated supply voltage
12...42 V DC

Kit composition
Transmitter
displacer element ((to be purchased seperately))

Complementary

Housing material
Aluminium
Stainless steel

Safety level
SIL2

Type of measurement
Level inferred by buoyant force

Connector type
DIN flange
ASME flange
JIS flange

Product certifications
CE
FM
CSA
EAC
NEPSI
INMETRO
PED

Specification

Technology float
Medium for liquids
Interface HART, PROFIBUS
Applications high-temperature
Other characteristics with digital display, rugged, ATEX, intrinsically safe, IP66
Level range

Max.: 10 m
(32'09" )

Min.: 0 m
(0'00" )
Process pressure

Max.: 500 bar
(7,251.89 psi)

Min.: 1 bar
(14.5 psi)
Process temperature

Max.: 500 °C
(932 °F)

Min.: -196 °C
(-321 °F)
