AxiDraw SE/A3

  • 00100-HW-AXI-064

  • 00100-HW-AXI-064

  • 00164-HW-AXI-064

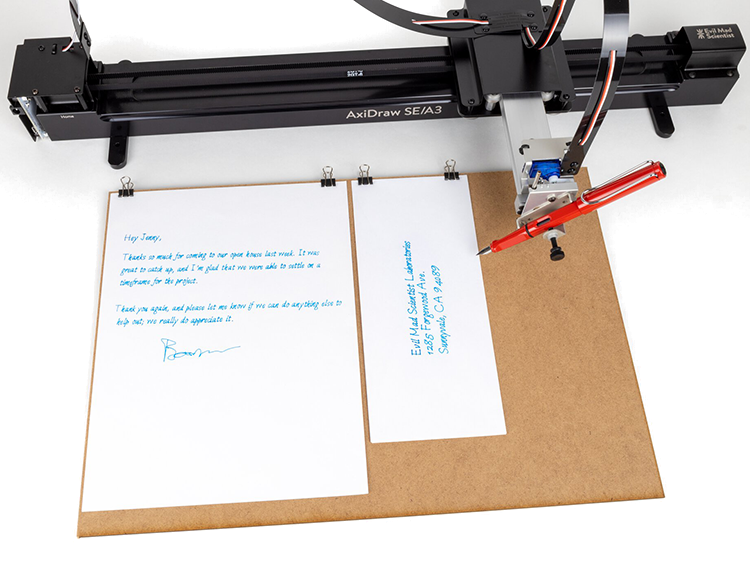

The AxiDraw is an extremely versatile machine, designed to serve a wide variety of everyday and specialized drawing and writing needs. You can use it for almost any task that might normally be carried out with a handheld pen.

Manufactured by:

AxiDraw

Need Help Ordering?
Call +88 01714243446

Stock
Stock Out

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Stock Out

Custom Pricing

Get A Quote

Overview

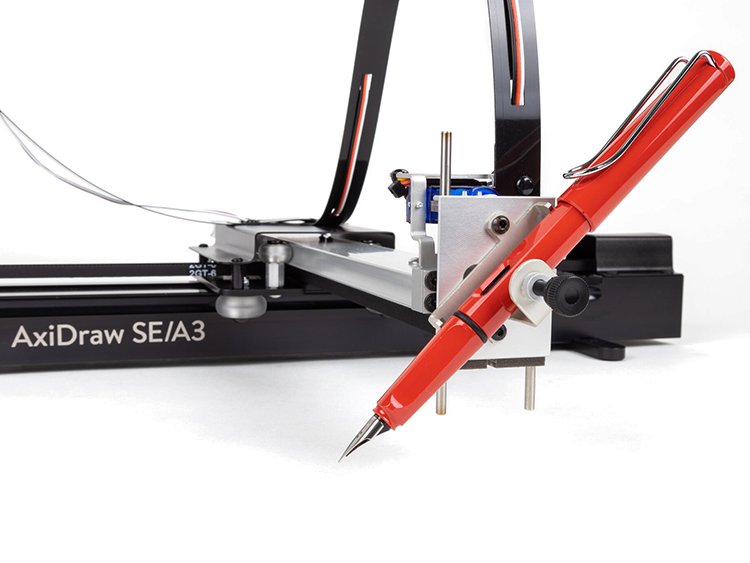

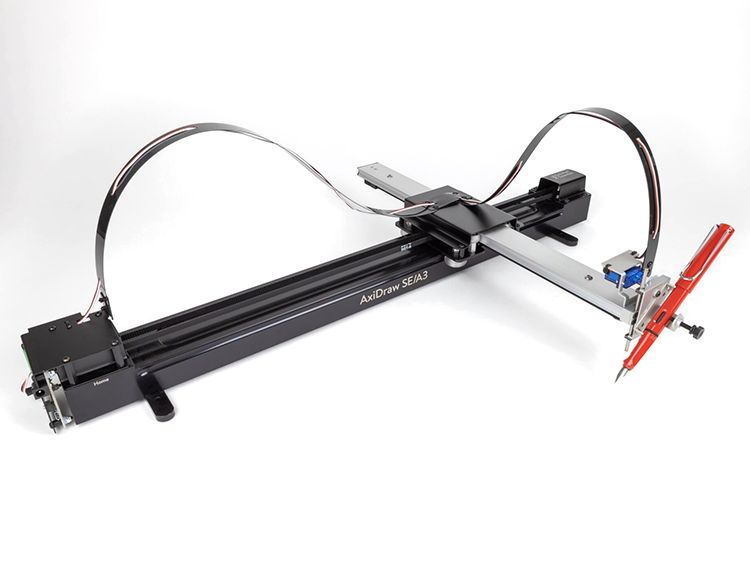

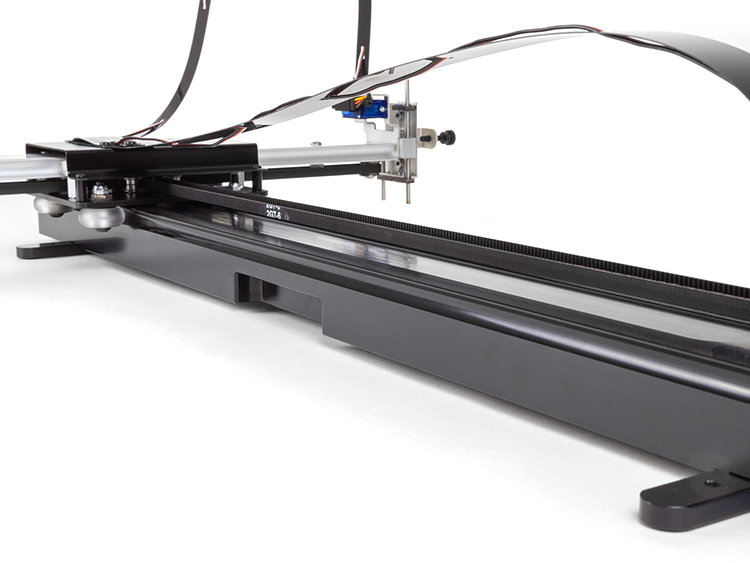

The AxiDraw is a simple, modern, precise, and versatile pen plotter, capable of writing or drawing on almost any flat surface. It can write with your favorite fountain pens, permanent markers, and other writing implements to handle an endless variety of applications. Its unique design features a writing head that extends beyond the machine, making it possible to draw on objects bigger than the machine itself. The mechanical design of the AxiDraw features smooth rolling wheels on custom aluminum forms, specially designed for high stiffness and light weight.

Specification

Specification

Performance:

  • Usable pen travel (inches): 16.93 × 11.69 inches.
  • Usable pen travel (millimeters): 430 × 297 mm.
  • Vertical pen travel: 0.7 inch (17 mm).
  • Maximum XY travel speed: 15 inches (38 cm) per second.
  • Native XY resolution: 2032 steps per inch (80 steps per mm).
  • Reproducibility (XY): Typically better than 0.005 inches (0.1 mm) at low speeds.

Physical:

  • Major structural components are machined and/or folded aluminum.
  • Holds pens and other drawing instruments up to 1" (25.4 mm) diameter.
  • Overall dimensions: Approximately 26 × 19 × 5 inches (66 × 48 × 13 cm).
  • Maximum height with cable guides: Approximately 11 inches (29 cm).
  • Footprint: Approximately 26 × 5 inches (66 x 13) cm.
  • Physical weight: 8.4 Lb (3.8 kg).
  • Dimensional shipping weight: 39 Lb (17.5 kg).

Software:

  • Compatible with Mac, Windows, and Linux
  • Drive directly from within Inkscape, using the AxiDraw extension.
  • Comprehensive user guide available for download.
  • Driver software software free to download and open source
  • Internet access is required to download software.
  • Additionally, AxiDraw Merge software available at no cost to AxiDraw owners.

Programming interfaces:

  • Note: programming is not required to use the AxiDraw.
  • Stand-alone command line interface (CLI) .
  • Available AxiDraw python API.
  • RESTful API available for full machine control, stand-alone or accessible by running RoboPaint in the background.
  • Simplified "GET-only" API available as well, for use in programming environments (such as Scratch, Snap) that permit only retrieval of URLs.
  • Direct EiBotBoard (EBB) command protocol available for use in any programming environment that supports communication with USB-based serial ports.
  • Code that generates SVG files can also be used to (indirectly) control the machine.
