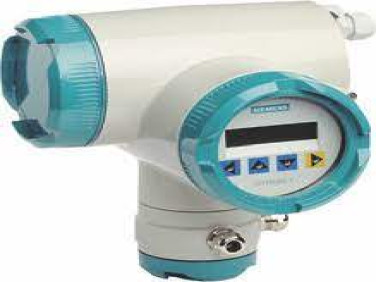

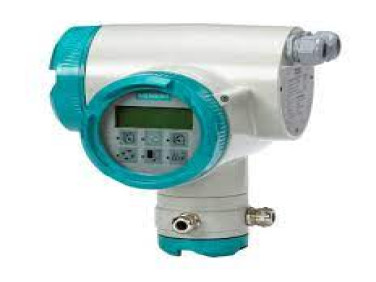

Siemens Electromagnetic flow transmitter SITRANS F M MAG 6000

  • 400-HW-SIM-11

  • 400-HW-SIM-11

The SITRANS F M MAG 6000 I and the SITRANS F M MAG 6000 I Ex de are microprocessor-based transmitters which can be used in the harshest industrial environments.

Manufactured by:

Siemens

Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote

Overview

The SITRANS F M MAG 6000 I and the SITRANS F M MAG 6000 I Ex de transmitters have an measuring accuracy of + 0.2% of the flow rate and are designed to meet the demands of the process industry. Both versions are based on a microprocessor with a built-in alphanumeric display.

Whether it's a standard flow meter with modular pulsed DC technology, a high-performance AC pulsed flow meter, or a battery-operated electromagnetic water meter, an electromagnetic flow meter from the SITRANS F M product line facilitates flow rate management. SITRANS F M devices are why users worldwide rely on sophisticated products available from Siemens.

Specification

Specification

Accuracy 0.2 % ±1 mm/s
Input / output 1 current , 1 pulse/frequency , 1 relay
 Communication HART, MODBUS RTU, Profibus PA/DP, DeviceNet, Foundation, Fieldbus
Display Background illumination with alphanumeric text, 3 x 20 characters
Enclosure IP67 (NEMA 4x)
Power supply 24 V d.c., 115-230 V a.c., 18-30 V d.c.
Ambient temperature From -20 to 60°C (-4 to 140 °F)
Approvals CE, C-tick, FM class 1, div 2, FM class 1, zone 2, CSA class 1, div 2, CSA class 1, zone 2
 Ex-approvals IEC Ex de [ia] [ib] ia IIC T6 Gb Ex tDa 21 IP67, ATEX II 2(1)(2) GD EEx de [ia] ia [ib] IIC T6
