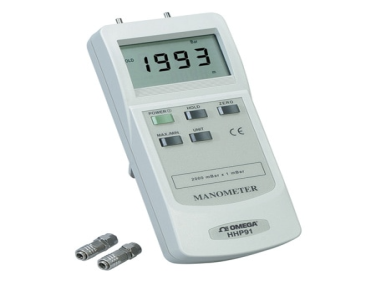

HHP91-Series Manometer with Both Positive and Negative Pressure Display

  • NG # 03348-HW-Omega-028

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Model HHP91 is a precision manometer for automotive, HVAC, laboratories, and general industrial applications. The unit comes complete with a built-in sensor with dual inputs for gage or differential measurements. It is compatible with air or non-corrosive and non-ionized gases and liquids. Either port measures the full range. P1 is positive with increasing pressure, P2 is negative with increasing pressure. Eight selectable pressure ranges make this instrument compatible with all measuring systems. The readings are easy to read, displayed in large 15 mm (0.6") high digits.

Specification

Units: psi, mbar, kg/cm2, mmHg, inHg, mH2O, inH2O, atm
Functions: Auto off (after approx. 20 min), reading hold, min and max
Accuracy: 2% FS, 23 ±5ºC, includes linearity, repeatability and hysteresis
Operating Temperature: 0 to 50ºC (32 to 122ºF)
Operating Humidity: <80% RH (non-condensing)
Power: 9V alkaline battery (included)
Sampling Time: Approximately 0.8 seconds
Pressure Ports: Quick disconnect for 3 to 4 mm ID tubing
Meter Dimensions: 185 H x 78 W 38 mm D (7.2 x 3.0 x 1.4")
Meter Weight: 345 g (0.8 lb)
