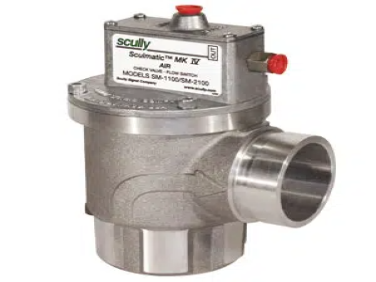

Scully Mark IV Flow Switch Angle Check Valve

  • NG # 03172-HW-SCULLY-040

  • MF # SC06817B

Manufactured By :
Scully
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SCULMATIC Mark IV flow sensing switch activates SCULMATIC air throttle actuators to increase the truck's engine from idle to full pumping speed when delivery nozzle is opened and flow begins. The SCULMATIC MK IV is a discharge check valve when installed between the meter and hose reel.

Specification

  • 1/4" gauge port
  • 20 amp normally open electrical switch (not for gasoline use)
  • Less than 7 PSI pressure drop at 100 GPM
  • 3 PSI cracking pressure at zero flow
  • Viton poppet seal
  • No gasoline use "
