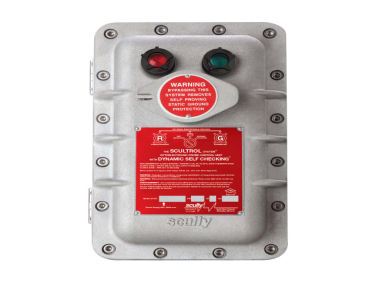

Scully ST-15-115-ELK Single Point Thermistor Controller w/ Explosion-Proof Housing, Indicator Lamps, Lockable Bypass Switch, 115V AC

  • NG # 03146-HW-SCULLY-014

  • MF # SC07677

Manufactured By :
Scully
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Scully ST-15 single point overfill prevention controllers interface with 2-wire optic, thermistor truck-mounted sensors, or top-loading portable canes. They are mounted at a loading rack or fill station for connection to a single compartment tank vehicle. The ST-15 provides the vehicle with an adequate static ground path to the rack provided the vehicle overfill equipment is wired and maintained to factory speciation's. It connects to the vehicle via Scully plug and cable assembly or cane sensor.

Specification

  • Part Number: 07677
  • Model: ST-15-115-ELK
  • Power Requirements: 105 - 130 V AC, 50/60 Hz, 20 Watt max.
  • Thermistor Sensors (FM & CSA Approved): SP-BL, SP-BLU, SP-BLH two-wire Optic Sensors SP-TO, SP-TOM, SP-IO, SP-IR, SP-TO(SS), SP-TO(SS)HP
  • Enclosures: Explosion-proof, weathertight. Corrosion inhibiting epoxy paint optional
  • Indicator Lamps: Red = Power On/Non-Permit Green = Permit
  • Turn on response time: 6 - 30 seconds (typical) for thermistors - Two-wire optics turn on instantly
  • Shutdown Response Time: 0.5 seconds maximum
  • Connections: Provided by internal terminal strips
  • Output Control: One normally open volt free contact, rated 250 V AC, 5A resistive, energized when the sensor is dry
  • Output Control Fuse: Internal 5 Amperes
  • Approvals: XP-AIS /I/1/CD/T6 Ta = -40°C to 60°C; Entity - 61654; XP-AIS/I/1/IIB/T6 Ta = -40°C to 60°C; Entity 61654 Class I Zone 1 Group IIB
  • Weight: 28 lbs. (12.7 kg)
