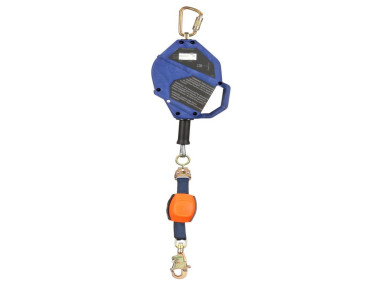

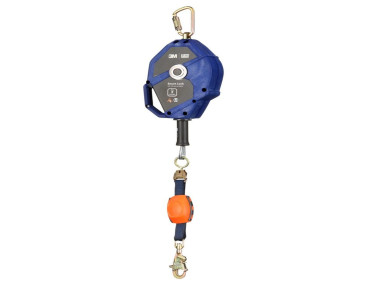

3M DBI-SALA 3503890 Smart Lock 30 ft. Leading Edge Modular Connector Self-Retracting Lifeline, Galvanized Cable, ANSI Class 2

  • NG # 0762-HW-3M-016

  • MF # DBI-3503890

  • SKU # DBI-3503890

Manufactured By :
3M
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

ANSI Class 2 certified to the new ANSI/ASSP Z359.14-2021 standard, the 3M™ DBI-SALA® Smart Lock Edge is a revolutionary SRL that detects differences between a fall and normal work motion. This Smart Lock Edge 3503890 SRL has a galvanized cable lifeline that extends to a length of 30 feet (10 m). From decreasing lockups to simplifying inspections, the new Smart Lock SRL ensures safety and convenience when working at height.

3M™ DBI-SALA® Smart Lock Self-Retracting Lifeline are our smartest SRLs yet. From reducing nuisance lockups, to simplifying inspections, every detail of the new 3M™ DBI-SALA® Smart Lock Self-Retracting Lifeline is designed with helping workers perform with safety and convenience

Using advanced motion capture technology, we studied the forces applied to the SRL during typical at-height tasks. This data helped us engineer a new arrest mechanism that can more easily detect the difference between a fall and normal work motion, tailoring a SRL for your work application.

Specification

  • ANSI Class 2 (For use with anchorages AT, ABOVE, or BELOW the dorsal D-ring)
  • Rugged and lightweight thermoplastic housing with built in ergonomic handle
  • 30 ft. (10m) of 7/32" (5.5mm) galvanized steel cable lifeline
  • Using advanced motion capture, horizontal use is designed to help reduce nuisance lockups when compared to our previous generation SRLs
  • Highly-visible orange Leading Edge external energy absorber indicates the product is designed for sharp edge applications
  • Patent pending magnetic retraction control system allows lifeline retract smoothly, hands free
  • Swiveling anchorage point and carabiner included
  • Patent pending dual label system located within ergonomic cable handle to simplify inspections and reduce the need for replacement
  • Swiveling snap hook with impact indicator
  • Connected Safety RFID located in cable handle
  • Standards/Approvals: ANSI/ASSP Z359.14-2021 OSHA 1926.502 & OSHA 1910.140
  • Overall Dimensions: 31.5 x 9" x 4"
  • Weight Capacity 130 lbs. - 310 lbs.
  • Maximum Arrest Force: 1500 lbs.
  • Average Arrest Force: 1125 lbs.
