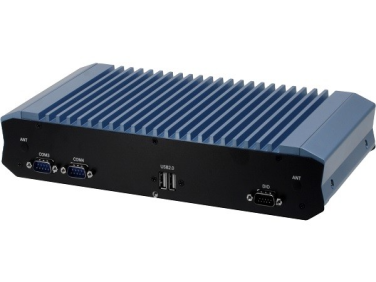

AAEON BOXER-6642-CML Fanless Embedded Box PC

  • NG # 03641-HW-AAE-018

BOXER-6642-CML Fanless Embedded Box PC with Socket Type 10th Generation Intel® Core™ Processor

Manufactured By :
AAEON
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The BOXER-6642-CML is the first fanless industrial PC from AAEON to offer the 10th Generation Intel Core i3/i5/i7/i9 and Intel® Celeron® processors (up to 35W TDP). Utilizing a socket-type desktop chipset, the system can be easily scaled or upgraded to match the performance needs of any application. Additionally, its slim design, only 54mm thick, allows it to fit into almost any tight space, allowing it to be deployed right where it needs to be.

Specification

SYSTEM
CPUIntel® Core™ i9-10900TE
Intel® Core™ i7-10700TE
Intel® Core™ i5-10500TE
Intel® Core™ i3-10100TE
Intel® Celeron® G5900TE
ChipsetIntel® Q470E
System MemoryDDR4 SO-DIMM x 2, up to 64GB
Display InterfaceHDMI 1.4 x 1
Storage DeviceM.2 2280 slot x 1 (PCIex4),
2.5” SATA SSD/HDD bay x 1
EthernetIntel® i211-AT x 1, i219-LM x 1
I/OHDMI x 1
RJ-45 x 2 for GbE LAN (i211-AT x 1, i219-LM x 1)
USB 3.2 Gen 2 x 4
USB 2.0 x 2
DB-9 x 4 for RS-232/422/485
DB15 x 1 for 8 channel DIO
Line out x 1
3 pin 10~35V Power Input x 1
Power Button with LED x 1
ExpansionM.2 2230 E Key x 1
M.2 2280 M Key x 1
Full-Size Mini Card x1 (mSATA/PCIe switch by BIOS, default PCIe)
SIM x 1
IndicatorPower LED
OS supportWindows® 10 IoT Enterprise 64-bit
Linux Ubuntu 20.04.2
POWER SUPPLY
Power Requirement10-35V DC-in with 3-pin terminal block
MECHANICAL
MountingWall Mount
Dimensions (W x H x D)11.58" x 5.98" x 2.11" (292.4mm x 152mm x 53.5mm)
Gross Weight8.4lb (3.8kg)
Net Weight6.2lb (2.8kg)
ENVIRONMENTAL
Operating Temperature32°F ~ 113°F (0°C ~ 45°C) (35W CPU), according to IEC68-2-14 with 0.5 m/s AirFlow (w/Industrial wide Temp. SSD/RAM)
Storage Temperature-40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity5 ~ 95% @ 40°C, non-condensing
Anti-Vibration2 Grms/5 ~ 500Hz/operation (with SSD)
Anti-Shock50G, IEC 68-2-27, half sine, 11 ms duration (with SSD)
CertificationCE/FCC Class A
