NG # 03663-HW-AAE-040

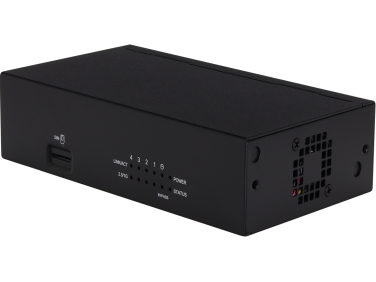

Implement network security solutions you can trust with the new FWS-2290. AAEON’s most powerful desktop network platform yet, the FWS-2290 offers Intel® Processor N-series processing alongside the most advanced selection of networking interfaces its desktop network appliance portfolio has ever seen, giving enterprises of all sizes the ultimate toolset with which to manage their network traffic, security, and connectivity.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteUtilizing the Intel® Processor N97 CPU, and supporting the full Intel® Processor N-series range, the FWS-2290 grants up to 8 cores of computing power at just 15W. Additionally, the platform offers integrated security for applications such as UTM and VPN through the inclusion of Intel® Control-Flow Enforcement Technology (CET), AES-NI, and Virtualization Technology for Directed I/O, accelerating encryption and decryption and reinforcing software vulnerabilities when managing large volumes of network traffic.
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Processor N97 |
| CHIPSET | SoC |
| SYSTEM MEMORY | Onboard 4G LPDDR5 |
| NETWORK | |
| ETHERNET | Intel® Ethernet Controller I226-V, 2.5GbE x 4 |
| BYPASS | 1 Pair |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® UHD Graphics |
| CONNECTOR | HDMI x 1 (Optional) |
| STORAGE | |
| HDD | 2.5" HDD Bay x 1 |
| CF/CFAST/MSATA | On board 32G eMMC SATA III port x 1 M.2 M key SATA slot x 1 for M.2 SSD |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | M.2 B Key x 1 (3052 for 5G, Co-lay Mini-Card slot-2 with Push-pin SIM for 4G LTE) M.2 E Key x 1 (2230, Co–lay Mini-Card-1 slot for WiFi) |
| Keyboard and Mouse | — |
| USB | USB 3.2 Gen 1 x1 USB 2.0 x 1 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| Software Button | GPIO Programmable push button x 1 |
| TPM | TPM 2.0 (NPCT760AABYX FW7.2.3.1 optional) |
| GPIO | 4-bit Input, 4-bit Output (optional) |
| FAN | Fan x 1 |
| MTBF (HOURS) | 952,764 |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER Consumption | 12V Lockable DC Power Input Connector x 1 (40W Power Adapter) |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (mSATA) 1.5 Grms/ 5 ~ 500Hz / non-operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non-operation |
| DIMENSION (W X D X H) | 6.5" x 3.62" x 1.57" (165mm x 92mm x 40mm) |
| I/O | |
| FRONT PANEL | Power LED x 1 Status LED x 1 Bypass LED x 1 Storage Active LED x 1 Ethernet LED x 8 Accessible SIM slot x 1 Antenna Hole x 2 (Right panel) Antenna Hole x 2 (Left panel) |
| REAR PANEL | Lockable DC Power Input Connector x 1 Power Button x 1 USB 3.2 Gen x 1 USB 2.0 x 1 RJ-45 x 4 RJ-45 Console x 1 Reset Button x 1 Antenna Hole x 2 |
