NG # 03637-HW-AAE-014

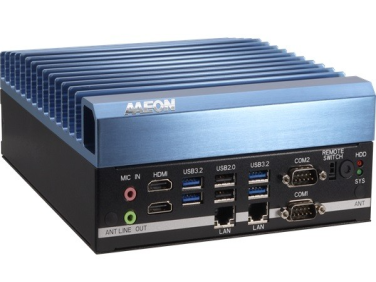

BOXER-6645U-RPL Fanless Embedded Box PC with Socket Type 12/13/14th Generation Intel® Core™ Processor
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteBuilt for optimum performance, the BOXER-6645U-RPL breaks across generations with support for 12th, 13th, and 14th Gen Intel® Core™ socket type processors, 10V to 35V power input range with power protection, and a wealth of interfaces conveniently grouped for maximum ease of deployment.
| SYSTEM | |
| CPU | 12/13/14th Generation Intel® Core™ LGA 1700 socket-type Processor, Max TDP 65W 13th Generation Intel® Core™ Processors: Intel® Core™ i9-13900TE, Intel® Core™ i9-13900E Intel® Core™ i7-13700TE, Intel® Core™ i7-13700E Intel® Core™ i5-13500TE, Intel® Core™ i5-13500E Intel® Core™ i3-13100TE, Intel® Core™ i3-13100E 14th Generation Intel® Core™ Processors: Intel® Core™ i9-14900, Intel® Core™ i9-14900T Intel® Core™ i7-14700, Intel® Core™ i7-14700T Intel® Core™ i5-14500, Intel® Core™ i5-14500T Intel® Core™ i3-14100, Intel® Core™ i3-14100T |
| Chipset | Intel® H610E |
| System Memory | DDR5 SODIMM x 2, up to 64GB |
| Display Interface | HDMI x 2, 4K x 2K @30Hz |
| Storage Device | 2.5” SATA Drive Bay x 2 M.2 2280 M-Key x 1 (PCIe Gen 3 [x4]) for NVMe |
| Ethernet | Intel® I219-LM, GbE RJ-45 x 1 Intel® I226-LM, 2.5GbE RJ-45 x 1 |
| I/O | USB 3.2 Gen 2 x 4, USB 2.0 x 2 DB-9 x 2 for RS-232/422/485 Audio x 1 (Mic-in/Line-out) Power Button with power LED x 1 Remote Power On/Off x 1 |
| Expansion | M.2 2280 M-Key x 1 (For NVMe Storage) M.2 2230 E-Key x 1 (for Wi-Fi/Bluetooth) Full Size MiniPCIe x 1 (optional for mSATA) Onboard TPM 2.0 |
| Indicator | System / Storage |
| OS support | Windows® 10 IoT Enterprise 64-bit Windows® 11 PRO 64-bit Linux Ubuntu 22.04 |
| POWER SUPPLY | |
| Power Requirement | 3-pin DC Input 10~35V |
| MECHANICAL | |
| Mounting | Wallmount |
| Dimensions (W x H x D) | 7.09" x 3.04" x 8.66" (180mm x 77.2mm x 220mm) 8.43" x 3.31" x 8.66" (214mm x 84.2mm x 220mm) with brackets |
| Gross Weight | 8.59 lb (3.9 kg) |
| Net Weight | 6.39 lb (2.9 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | -13°F ~ 131°F (-25°C ~ 55°C), IEC60068-2 with 0.7 m/s AirFlow, with wide temperature memory/storage (TDP 65W CPU) -13°F ~ 158°F (-25°C ~ 70°C), IEC60068-2 with 0.7 m/s AirFlow, with wide temperature memory/storage (TDP 35W CPU) |
| Storage Temperature | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| Storage Humidity | 5 ~ 95% @ 40˚C, non-condensing |
| Anti-Vibration | IEC60068-2-64, 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| Anti-Shock | 50G, IEC60068-2-27, half sine, 11ms duration (with SSD) |
| Certification | CE/FCC Class A |
