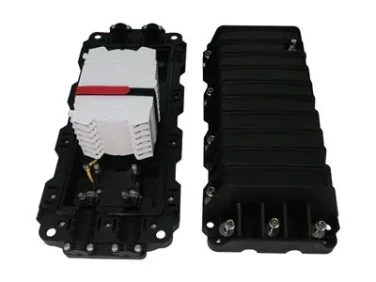

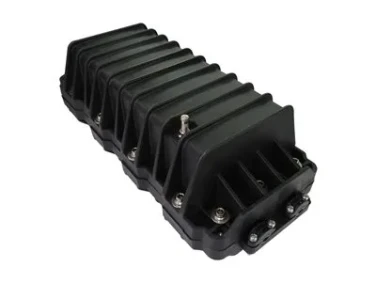

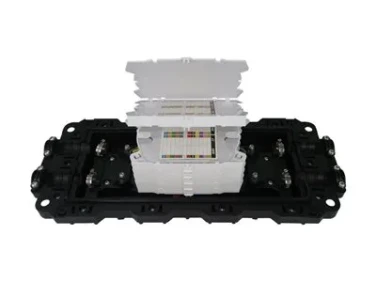

Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure - 6 Splicing Trays, 144 Fiber Capacity, IP68 Rated - fiber-optic splice enclosure (horizontal)

  • NG # 03933-HW-Eaton-026

  • MF # N600H-0144-6

Manufactured By :
Eaton
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Provides Durable, Customizable Protection for Outdoor Fiber Cable Runs


This fiber splicing horizontal enclosure comes with six splice trays that accommodate up to 24 unterminated cables each to give you more flexibility in adjusting cable lengths and connection types directly on-site. The N600H-0144-6 is ideal for singlemode and multimode fiber infrastructure in municipal broadband installations, including residential (Fiber to the Home or FTTH) and commercial (Fiber to the Premise or FTTP). This also includes underground fiber runs and those spanning utility poles.


Flexible Connections in Your Fiber Network


By accommodating and protecting 144 splicing connections, the N600H-0144-6 provides a high level of scalability in your network design. The enclosure supports up to four cable entry passthroughs to support a variety of cable runs. Each hinged fiber splice tray allows access to internal cabling without having to remove other trays, making on-going re-entry and re-use convenient.


IP68 Rating Denotes Resistance to Dust and Water


The N600H-0144-6's IP68 rating means the enclosure is 100% protected against dust and able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance.


Cable Management That's User Friendly


Built-in labels log which fiber is spliced to each of the 12 main MPO cable colors. Integrated cable ties keep cables well organized and secure. Included tubing protects each splice point.


A Great Variety of Installation Choices


Operating temperature range from -49°F to 149°F (-45°C to 65°C) supports safe installation in a wide range of outdoor climates. It can be installed on a pole, on a wall, on overhead telco lines or underground.

Specification

General
Product Type
Fiber-optic splice enclosure horizontal
Placing / Mounting
Pole mountable, wall mountable, aerial mountable, underground mountable
Indoor / Outdoor
Outdoor
Package Content
144 splicing tubes, 20 cable ties, 2 choke plugs, EVA tube, silicon oil, insulation tape, cleaning paper, aerial mounting hardware
Product Material
Plastic
Width
7.8 in
Depth
18.6 in
Height
5.9 in
Enclosure Color
Black
Cabling & Wiring
Port Qty
4 ports
Technology
Fiber optic
Features
Single-mode, multimode
Compliant Standards
OM1/OM2/OM3/OM4/OM5/OS2
Miscellaneous
Mounting Kit
Included
Features
6 splicing trays, up to 144 fibers, hinged splicing trays, dust protection, water protection, built-in labels log
Compliant Standards
RoHS, REACH, IP68
Dimensions & Weight (Shipping)
Shipping Width
9.4 in
Shipping Depth
22.4 in
Shipping Height
9.1 in
Shipping Weight
10.36 lbs
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-49 °F
Max Operating Temperature
149 °F
Humidity Range Operating
5 - 85% RH (non-condensing)
