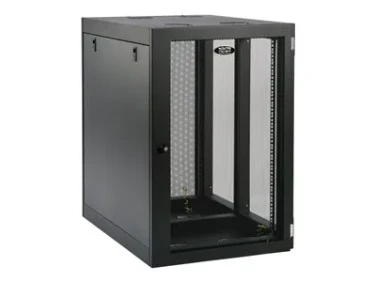

Tripp Lite 18U Wall Mount Rack Enclosure Server Cabinet Side Mount Wallmount rack - 18U

  • NG # 03939-HW-Eaton-032

  • MF # SRW18UHD

Manufactured By :
Eaton
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Saves Valuable Workspace

● Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way

● Houses EIA-standard 19 in. rack equipment in 18U of space

● Extends less than 25 in. from the wall while housing 1U servers, UPS systems, battery packs, network switches and patch panels up to 32.5 in. deep

● Maximum load capacity of 500 lbs (226.8 kgs)

Keeps Important Equipment Secure

● Sides and front lock securely to help prevent damage, tampering or theft

● Vented panels allow generous airflow that keeps equipment cool

● Convenient ports with removable covers allow cable routing through top and bottom

Easy Enclosure and Equipment Installation

● Ships fully assembled for quick installation

● Wall-mounting holes spaced 16 in. apart for standard wall stud placement

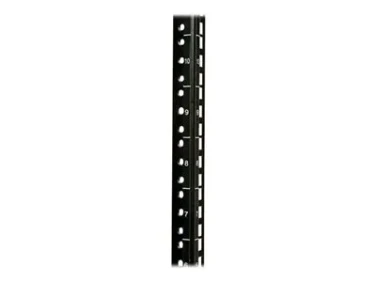

● Vertical mounting rails adjust in 7/8 in. increments

● Rails support square-hole or 12-24 threaded-hole mounting

● Rack spaces numbered for easy reference

Meets Payment Card Industry Standards

● Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.

Specification

General
Product Type
Rack
Rack Type
Cabinet
Placing / Mounting
Wall mountable
Package Content
42 cage nuts, 42 screws
Rack Size
19"
Height (Rack Units)
18U
Width
36.1 in
Depth
24.8 in
Height
35.9 in
Weight
119.93 lbs
Color
Black
Miscellaneous
Weight Limit
500 lbs
Features
Removable side panel, integrated cable management, vented side panels
Compliant Standards
EIA-310-E, NOM, RoHS
Manufacturer Warranty
Service & Support
Limited warranty: - 5 years
