NG # 00420-HW-ECOM-021
Attaining an equilibrium between cost management and customer contentment requires authentic supply chain agility. Bringing this vision to fruition calls for a highly adaptable workforce capable of prompt, confident, and precise responses to any situation.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteWhen workload demands shift unexpectedly, the CKx gives you the flexibility to redeploy staff without consideration to the tools needed to get the job done.
As a result, workers can quickly and confidently transition to tasks that require near or far scanning, speech, voice, and image capture, without wasting time finding and reorienting themselves on unfamiliar devices.
Specification
| CK70A ATEX DIMENSIONS WITH BATTERY | L x W x D: 23.7 x 8.0 x 4.3 cm (9.33 x 3.16 x 1.69 in) Weight: 562 g (19 oz) with battery Width: grip area 6.42 cm (2.53 in) |
| CK71A ATEX DIMENSIONS WITH BATTERY | L x W x D: 23.7 x 8.0 x 5.0 cm (9.33 x 3.16 x 1.98 in) Weight: 584 g (19.75 oz) with battery Width: grip area 6.42 cm (2.53 in) |
| OPERATING TEMPERATURE | -20° C to +50° C (-4° F to +122° F) |
| STORAGE TEMPERATURE | -30° C to +70° C (-22° F to +158° F) |
| CHARGING TEMPERATURE | +5° C to +35° C (41° F to 95° F) |
| RELATIVE HUMIDITY | Non-condensing, 95% |
| RAIN & DUST RESISTANCE | IP67 |
| DROP SPECIFICATION | 2.4 m (8ft.) to concrete per MIL-STD 810G, 1.8m (6 ft) to concrete across operating temperature range per MIL-STD 810G 2,000 (1m) tumbles per IEC 60068-2-32 specification |
| ELECTROSTATIC DISCHARGE | +/- 15 kV air discharge; +/- 8 kV direct discharge |
| BATTERY PACK | 3.7 V, 5200 mAh; IEEE 1725 compliant, Li-Ion, removable, rechargeable |
| OPERATING SYSTEM | Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology |
| MULTI-ENGINE PROCESSOR ARCHITECTURE | Texas Instruments 1GHz OMAP3 multi-engine processor architecture |
| MEMORY AND STORAGE | RAM: 512 MB ROM: 1 GB Flash Customer-accessible microSD slot for removable memory cards up to 32 GB |
| DISPLAY | • 8.9 cm (3.5 in) Transmissive VGA • 480 x 640 pixels • 65,536 (16 bit RGB) Colors • High-Durability Touch Screen • LED Backlight • Ambient Light Sensor |
| STANDARD COMMUNICATIONS | USB - Full Speed 2.0 Host©, USB - Full Speed 2.0 Client© IrDA |
| DEVICE MANAGEMENT | Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs |
| DEVICE HEALTH MONITORING | Remote access requires SmartSystem Management option |
| APPLICATION DEVELOPMENT | Intermec Developer Library www.intermec.com/dev |
| IMAGING SOLUTIONS | Intermec Shipment Address Verification (SAV) and Mobile Document Imaging (MDI) are compatible, licensed and sold separately |
| WEB BROWSING | Intermec HTML5 Browser |
| DATA MANAGEMENT | Skynax® Mobile Communications |
| WIRELESS LAN | IEEE® 802.11 a/b/g/n Dual Band WLAN |
| SECURITY | WiFi Certified for WPA and WPA2, WAPI Certified |
| AUTHENTICATION | 802.1x |
| CISCO COMPATIBILITY | CCXv4 |
| ENCRYPTION | WEP (64 or 128 bit), AES, TKIP |
| WIRELESS PAN: | BT Class II, Version 2.1+EDR |
| OPERATING CHANNELS | 0 to 78 (2402-2480 MHz) |
| DATA RATES | 1, 2, 3 Mbps |
| ANTENNA: | Internal |
| ACCELEROMETER | Embedded accelerometer enables automatic or application-specific features such as screen rotation or system suspend |
| AUDIO SUPPORT | Supports VoIP / Speech recognition / Push to talkapplications;front and rear speakers;rear speaker >80 dB at 40 cm (15.7 in);Front receiver and front panel microphone for handset audio communication and audio recording;Wireless Bluetooth headset support;Wired headset support via snap on adapter |

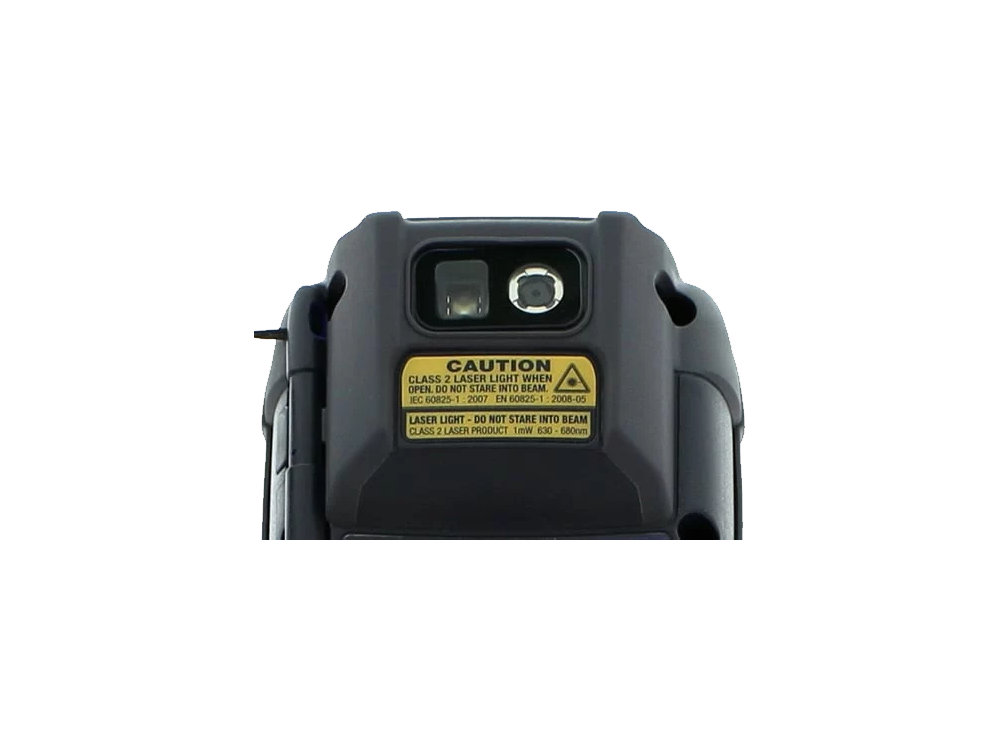

| INTEGRATED SCANNER OPTIONS | EV12 linear Imager with laser-like aimer; Capable of scanning 1D barcodes at standard range EA30 high performance motion-tolerant 2D Imager; white LED illumination;red laser aimer optimized for all lighting conditions; Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil;PDF as small as 6.6 mil; Data Matrix as small as 7.5 mil;and standard UPC codes from distances up to 33 cm (13 in) EX25 near/far 2D Imager; Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft) |
| INTEGRATED CAMERA OPTION | 5 Megapixel auto focus color camera with LED flash |
Data Sheet
