NG # 00404-HW-ECOM-005

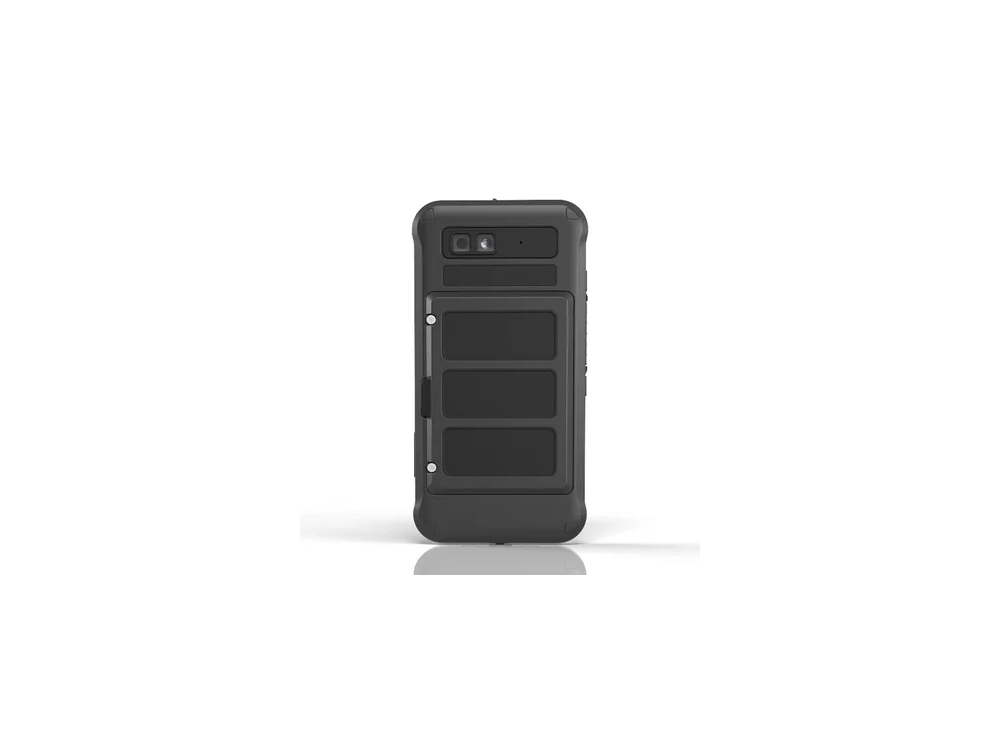

The Smart-Ex® 02M comes with the same and unrivalled features as the Zone 1 / Division 1 Smartphone, the Smart-Ex® 02: Same performances, same features, same quality. Of course, it is also unlocked, can be used with dirty or wet work gloves and has a powerful battery for a long workday.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteSpecification
| OPERATING SYSTEM | Android™ |
| PROCESSOR | Qualcomm Snapdragon 450 platform |
| MEMORY | 3 GB RAM, 32 GB ROM |
| DISPLAY | 720x1280 px, 12.7 cm (5.0 inch) extreme shock and scratch resistant Gorilla® Glass with glove touch and wet mode |
| BATTERY TYPE | Li-Ion battery , 4500 mAh (exchangable) |
| BAND | Cellular frequency bands: 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71, 4G LTE TDD: B38, B39, B40, B41, 3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz, 2G GSM: 850 / 900 / 1800 / 1900 MHz |
| PORTS | 3.5 mm jack connection with special ecom mounting solution, 7-pins water-proof magnetic USB 2.0 connector |
| DIMENSIONS | 163 x 82 x 22 mm |
| WEIGHT | approx. 380 g |
| CONNECTIVITY | 4G / LTE -standard (SIM unlocked); LTE Dual SIM; Nano SIM, WiFi 2.4 Ghz and 5 Ghz support, WiFi standards 802.11 a/b/g/n/ac/e/k/r/h, Bluetooth® 4.2 incl. BLE (Bluetooth Low Energy), GPS / A-GPS / Glonass / Beidou / Galileo, NFC |
| CAMERA | 12 MP rear with autofocus and LED flash with flashlight function / 5 MP front (optional) |
| BATTERY | Replaceable Li-Ion Battery pack with 3.7 V / 4400 mAh / 16.28 Wh |
| EMAIL CLIENT | EAS, Gmail, POP3, IMAP |
| AMBIENT TEMPERATURE | 0 °C … +50 °C |
| DEDICATED KEYS | Programmable / Alarm / Power / Multifunction / Volume / Hardware buttons for Android features |
| MICROPHONE | Dual mic solution with three selectable background noise suppression options |
| SPEAKER | Loud Speaker with Gore® Protective Vents |
| VIDEO STREAMING | Support MP4, M4V, 3GP, 3G2, TS, WMV, ASF, AVI, FLV, MKV, WEBM |
