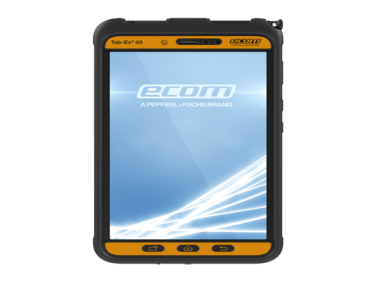

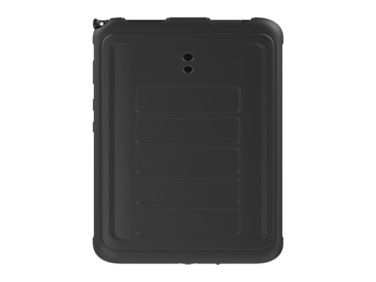

ECOM Tab-Ex® 03 DZ2 – Next Generation 8" (20.3 cm) Android™ ATEX Tablet for Zone 2/22 & Division 2

  • NG # 03332-HW-ECOM-047

The rugged, highly secure, Zone 2/22 & Division 2 rated intrinsically safe Android Tablet Tab-Ex® 03 continues the success story of the 3rd generation 8″ Tab-Ex® Series.

Manufactured By :
ecom
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Tab-Ex® 03 DZ2 comes in a slim and lightweight design with a new high-performance operating system that powers the tablet with industry leading performance in hazardous areas. The Samsung DeX function turns the compact tablet into a full desktop computer, and additional accessories, peripherals, digital products, and services ensure superior flexibility.

Specification

Hardware

  • Processor: Samsung Exynos 9810 (Octa-core: 4×2.7 GHz + 4×1.7 GHz)

  • RAM: 4 GB

  • Internal Storage: 64 GB (48.6 GB free)

  • Expandable Storage: microSD up to 1 TB (512 GB pre-installed option)

  • Display: 8" TFT LCD, 1920 × 1200 (WUXGA), 480 nits brightness

  • Touchscreen: Capacitive multitouch, glove-compatible

  • Battery: 5050 mAh, up to 11 hours runtime

  • Cameras: 13 MP rear (autofocus), 5 MP front (version without camera available)

  • Weight: 610 g

  • Dimensions: 126.8 × 213.8 × 9.9 mm

Connectivity

  • Mobile Network: 2G/3G/4G LTE (various global bands)

  • Wi-Fi: 802.11 a/b/g/n/ac/ax (2.4 & 5 GHz)

  • Bluetooth: 5.0

  • GPS: Supports GPS, Glonass, Beidou, Galileo

  • NFC, ANT+, Wi-Fi Direct

  • USB: 3.1 Gen 1

  • SIM Slot: 1x Nano SIM (optional)

Scope of Delivery

  • Tablet

  • Battery

  • Ex-protective cover

  • S Pen

  • USB cable

  • Charger

  • Documentation

  • Optional: microSD card, Viator Bluetooth HART Interface

Software & Security

  • OS: Android 13

  • Security: Samsung KNOX 3.x

  • Features: Samsung DeX Mode, Google ARCore

Certifications & Protection

  • ATEX: Zone 2/22 (gas and dust environments)

  • IECEx, INMETRO, EAC, KCC, SGS, MASC

  • Ingress Protection: IP64 (ATEX/IECEx), IP68 (Industrial, MIL-STD-810H)

  • Temperature Range: -20 °C to +55 °C
