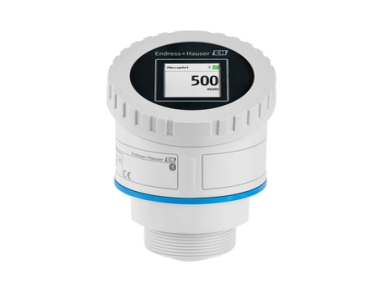

Endress+Hauer Micropilot FMR30B - radar sensor for basic applications

  • NG # 006207-HW-ENDRESS-007

The Micropilot FMR30B provides accurate, maintenance-free radar level measurement with fast commissioning, Bluetooth connectivity, and compact design ideal for tight spaces and diverse utility applications.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Equipped with 80 GHz technology, the FMR30B ensures reliable level monitoring in basins, rivers, sewers, tanks, silos, and stockpiles. Guided wizards simplify setup, while Heartbeat Technology enables on-demand verification and diagnostics without process interruption. With secure Bluetooth remote access and an intuitive color touch display, the device delivers efficient operation and reduced downtime across a wide range of industries.

Specification

Measuring principle

Level radar

Characteristic / Application

Water & Wastewater
(e.g. basins / channels / rivers / dams / lift stations /
storm water basins / pump control)
Utility applications in all industries
Storage tanks

Specialities

Bluetooth® commissioning
Operation and maintenance SmartBlue App
Heartbeat Verification

Supply / Communication

2-wire (HART, 4…20 mA)
Bluetooth® wireless technology and App
(optional)

Frequency

W-Band (~80 Ghz)

Accuracy

+/- 2mm (0.08")

Ambient temperature

-40…+80°C
(-40…+176°F)

Process temperature

-40…+80°C
(-40…+176°F)

Process pressure / max. overpressure limit

-1…3 bar
(-14,5…43 psi)

Main wetted parts

PVDF, PBT/PC

Process connection

Thread:
G1-1/2", NPT1-1/2"
Flange:
UNI flange 2“, 3“, 4“
UNI slip on flange 3“, 4“, 6“

Max. measurement distance

30m (98.4 ft)

Communication

4...20 mA HART
Bluetooth® wireless technology

Certificates / Approvals

ATEX, C/US, EAC Ex, JPN Ex, KC Ex,
INMETRO Ex, NEPSI Ex, UK Ex

Safety approvals

Overfill protection WHG

Hygienic approvals

EU Food Contact Material (EC) 1935/2004
US Food Contact Material FDA CFR 21

Marine approval

ABS, LR, BV, DNV

Drinking water approvals

NSF/ANSI 61

Options

Display, Remote operation via SmartBlue App using
Bluetooth®
Remote HART indicator RIA15 in order
structure
Flooding protection tube
Different mounting possibilities

Application limits

Process temp. <-40°C (-40°F) or > 80°C (176°F) -> FMR62B
Very aggressive media -> FMR62B
Turbulences, stilling well and bypass -> FMR62B
Strong foam and interfaces --> FMP5x
